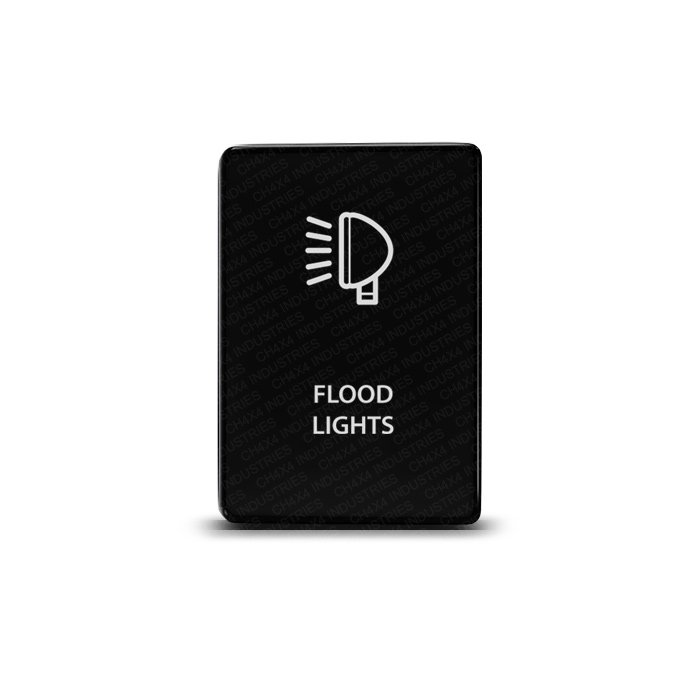

CH4x4 Small Push Switch for Toyota – Flood Lights Symbol

$23.98

Give your flood-light circuit a dedicated label instead of an unmarked accessory button. The Flood Lights Small Push switch combines a laser-etched matte black face, two LEDs and 12V 3A ON/OFF action in a 32.5 × 22 mm OEM-style format for the listed Toyota applications; always use a fused relay.

Switch LED Color

Clear

Description
Additional information

Keep Flood Lights easy to identify among your vehicle’s accessory controls. This CH4x4 Small Push switch puts a dedicated lighting legend on a matte black face, helping organize a panel that also contains camera, auxiliary-light or other switches.

Separate the lighting circuits by name

The Flood Lights legend is laser etched into the hard face. It labels the circuit you connect to the control, so the driver can distinguish it from other lights without relying on button position alone. If your panel also has fog lamps, compare the Fog Lights switch for that separate label.

The switch does not determine the beam pattern or output of the connected lamps. Select the legend for the circuit you have installed, and choose the circuit components around the actual lighting load.

Electrical details and illumination

Electronic 12V 3A switch with short circuit protection.
Single Pole Single Throw ON/OFF operation.
One upper LED illuminates with the switch pressed IN.
One lower LED can connect to a separate dash-light circuit.
Heavy-duty ABS construction with a matte black hard face.

Small Push dimensions and vehicle fitment

The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style control is compatible with Toyota applications below. Confirm the year and available opening, especially the Tacoma center-console restriction.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Prepare the relay-controlled installation

The accessory MUST be wired through a fused relay in ALL cases. The 3A switch rating does not authorize direct connection of the lamps. Use the supplied wiring diagram and select the fuse, relay and load wiring to match the lighting circuit.

One Small Push ON/OFF switch and one connector with cable are included; a wiring diagram is supplied. Review the relay with 5-pin harness when planning installation parts.

For a coordinated factory look, compare other legends in the Small Push Series. The relevant Toyota owner’s manual can help identify original vehicle controls before arranging your added lighting buttons.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Flood Light
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Flood Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
