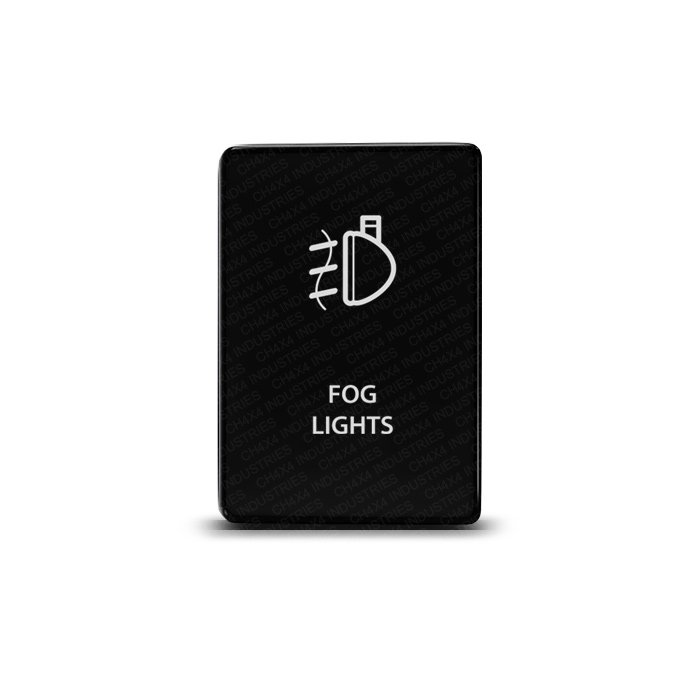

The Fog Lights Small Push switch gives an added fog-light circuit its own recognizable control. Its matte black finish and laser-etched legend create an OEM-style appearance, with a compact face that suits the listed Toyota switch positions.
Check the mounting position first
The face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Match the opening and vehicle year before selecting this switch. A factory look does not mean every blank in the dashboard or console uses the same format.
Compatible with Toyota applications listed
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
For Tacoma, fitment is Center Console ONLY. Keep that restriction in mind when planning the location of your Fog Lights control.
Button action and the two LEDs
This is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection. Heavy-duty ABS construction supports the black hard face and laser-etched Fog Lights legend.
The upper LED illuminates when the button is pressed IN. The lower LED can connect to a separate dash-light circuit, allowing panel illumination to use its own connection. Follow the supplied diagram for these switch functions.
Plan the lighting connection
The accessory MUST be wired through a fused relay in ALL cases. Select the relay, fuse and load wiring for the actual lamps being installed. This switch provides control; it does not change the lamps’ beam pattern or establish compatibility with original fog-light electronics.
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied. Review the 5-pin relay and harness specifications while gathering the required circuit parts.
If you are labeling a separate broad-area lighting circuit, compare the Flood Lights design. Choose legends that distinguish the circuits clearly for the person using the panel.
For information about the vehicle’s original lighting controls, refer to the applicable Toyota owner’s manual. Use that reference for the vehicle controls and the supplied diagram for the accessory switch connections.
