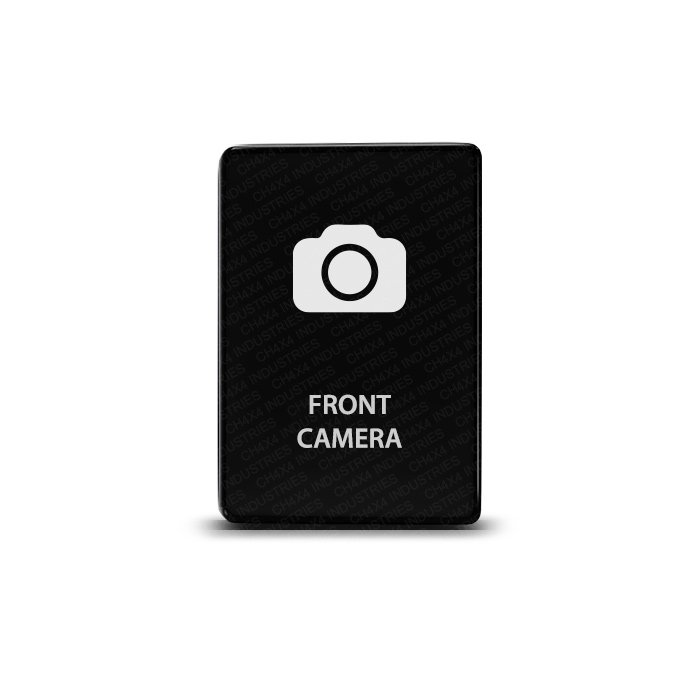

A Front Camera push switch makes the forward-camera accessory circuit identifiable on a panel with several controls. CH4x4 pairs the laser-etched legend with a matte black face for a factory look in the listed Toyota applications.
Distinguish front-view and other camera controls
The Front Camera label names the circuit assigned to the button. If the vehicle also has a rear-view camera accessory, compare the Backup Camera legend to keep those controls visually distinct. For recording-camera labels, the Dashcam Recording design offers different wording.
This product provides switch control, not a video interface or camera. Display selection and image behavior depend on the connected system. Verify that system’s requirements separately before deciding how its accessory circuit should be switched.
Front Camera switch specifications
- Electronic 12V 3A switch with short circuit protection.
- Single Pole Single Throw control in the ON/OFF Symbol Series.
- Heavy-duty ABS construction and matte black hard face.
- Laser-etched legend.
- Upper LED illuminates when the button is pressed IN.
- Lower LED can connect to a separate dash-light circuit.
Check the 32.5 × 22 mm format
The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Match the intended opening, model and year to this OEM-style Small Push format. Tacoma fitment is for the center console only.
Compatible with Toyota applications below
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For listings marked ON, confirm your exact model year and switch opening before ordering.
Connections and package contents
The accessory MUST be wired through a fused relay in ALL cases. Use the supplied switch diagram and choose the relay, fuse and load wiring to suit the actual accessory. The switch LEDs identify their wired functions; they do not verify that a camera is producing an image.
One Small Push switch and one connector with cable are included, with a wiring diagram supplied. The appropriate Toyota owner’s manual can help identify original vehicle controls when planning the added camera button’s position.
