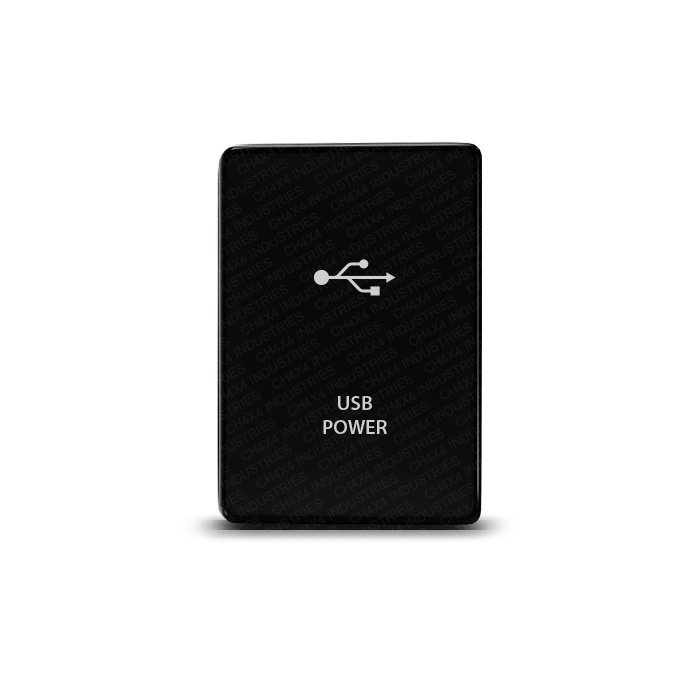

CH4x4 Small Push Switch for Toyota – USB Power Symbol 4

$23.98

The USB Power Symbol 4 button labels a suitable accessory power-control circuit; it is not a USB charging socket. Its 32.5 × 22 mm laser-etched face, matte black finish and dual LEDs suit a factory-look panel. 12V 3A ON/OFF operation requires a fused relay.

Switch LED Color

Clear

Description
Additional information

The USB Power Symbol 4 push switch gives a suitable accessory power circuit a recognizable panel label. This item is an ON/OFF switch, so a separate USB charger or converter must provide any charging ports and USB output required by your installation.

USB Power control, clearly identified

The Symbol 4 version identifies the artwork selection shown in the product gallery. Its legend is laser etched into a matte black hard face, supported by a heavy-duty ABS body. The OEM-style format is compatible with the Toyota mounting applications listed below.

Check these electrical details

Electronic Single Pole Single Throw ON/OFF switch.
3A rating at 12V with short circuit protection.
Upper LED illuminates when the button is pressed IN.
Lower LED can be wired to a separate dash-light circuit.

The accessory MUST be wired through a fused relay in ALL cases. The 12V switch rating is not a USB output specification. Confirm the separate charger’s supply and control requirements before wiring the circuit.

Size and mounting position

The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Check the available opening to preserve a factory look. On Tacoma, the listed application covers the center console only.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Supplied with your order

One Small Push ON/OFF switch and one connector with cable are included. A wiring diagram is supplied to show the switch connections. USB charging hardware, a converter and a fused relay are not listed package components.

Complete the panel layout

Keep the USB Power control distinguishable from general accessory power buttons when planning several circuits. The upper LED indicates the switch state, not a connected device’s charging status.

Find coordinating legends in the Small Push series. For information about existing vehicle controls, refer to the appropriate Toyota owner’s manual.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – USB Power Symbol 4 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
