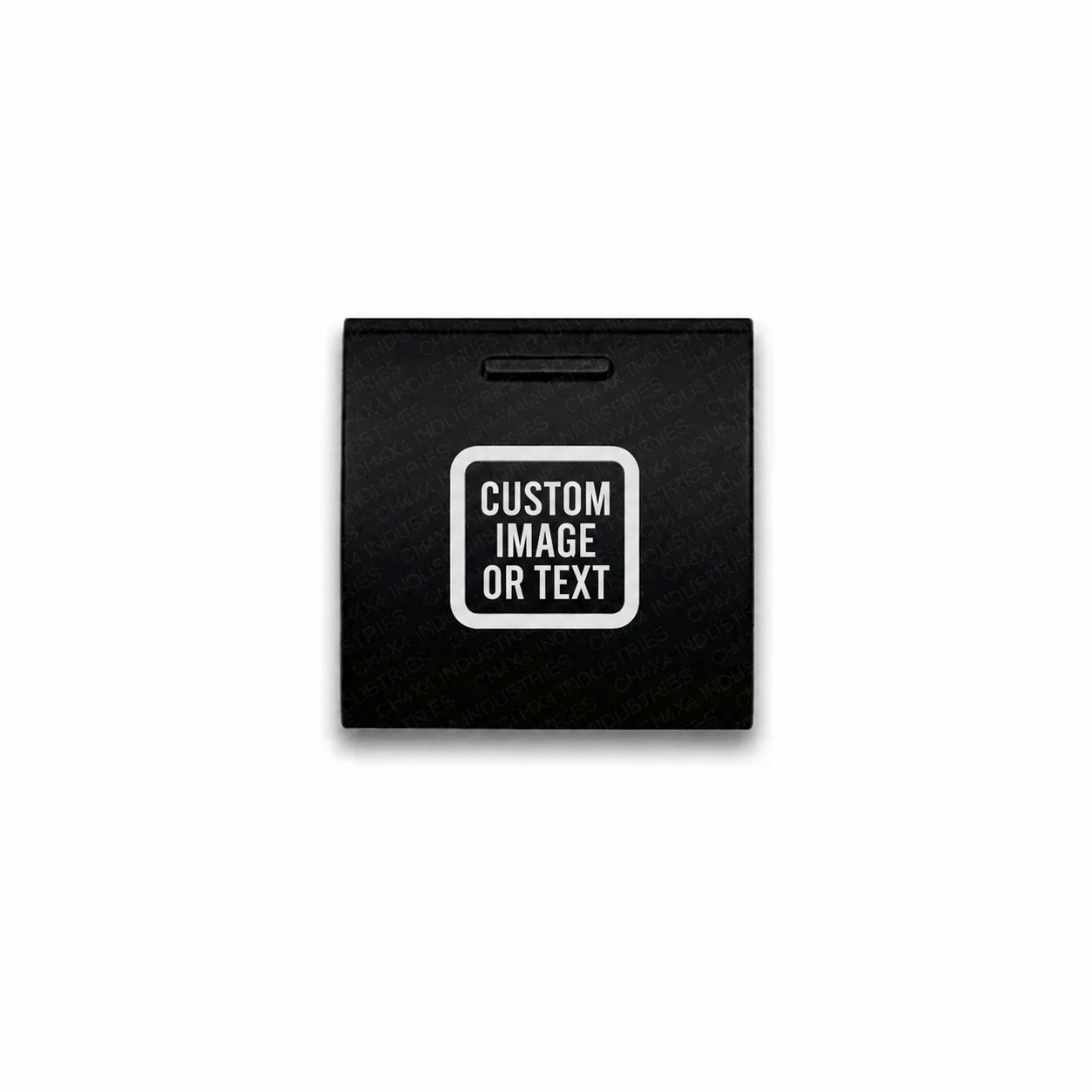

Make it yours. The CH4X4 Custom Square Push Switch for Toyota lets you design the face of your own switch right on this page — choose an icon from our library or type your own text, see it on the switch instantly, and we laser-etch it in white on a matte black, OEM-style 22 × 22 mm square face. Use it to mark and operate a compatible relay circuit for lights, an air compressor, a locker, a fridge, communications gear or any other 12V accessory in a Toyota with a matching dash opening.
Design it in three steps
- Press Customize This Switch under the switch photo to open the design tool.
- Pick one icon — browse the library by category or search by word (“lock”, “compass”, “skull”, “winch”…) — or type your own text.
- Choose your Switch Type and LED Color, then add it to your cart. Your design is saved with your order.
What you can put on the switch
- An icon: more than 1,000 icons in categories such as vehicles, marine, military, seasonal, emoji and general symbols, automatically sized and centered on the face.
- Or your own text: up to 16 characters, shown live as you type. It wraps to two centered lines of up to 8 characters each, and you can choose from a selection of bold fonts.
- Text or an icon, not both: a face this small reads best with one clean graphic, so this switch takes either one.
- White engraved design: the icon or text has a white appearance on the matte black face. The LED color is a separate choice: Amber, Blue or White when illuminated.
Size and position are set automatically, so every switch comes out centered and easy to read once it is etched. Because each switch is made to order from your design, please check your text spelling and your icon choice before adding it to the cart.
Matching your other CH4X4 switches: select Myriad Pro Semibold, the standard font used by default on our switches. Other available fonts let you give this custom switch a different look.
Custom laser-etched graphics
Your icon or text is precision laser etched directly into the switch face using professional laser engraving equipment. It is not a sticker, decal or surface-applied print. Laser etching gives a crisp, professional result and lets the switch illumination shine through the engraved graphic for excellent nighttime visibility.
Choose ON/OFF or Momentary operation
- ON/OFF (latching): press once to turn the switch circuit ON. It stays ON after you release the button; press again to turn it OFF.
- Momentary: press and hold to turn the switch circuit ON. Release the button and it returns to OFF.
Both options are Single Pole Single Throw (SPST). Choose the action required by the equipment you intend to control. Your custom graphic identifies the function; it does not change the switch’s electrical rating or establish compatibility with an accessory’s control system.
Switch features
- Your own icon or text laser-etched directly into the switch face.
- 22 × 22 mm (0.86 × 0.86 in) square face; verify the dash opening before ordering.
- Choose SPST maintained ON/OFF or MOMENTARY operation.
- Heavy-duty ABS construction with a matte black, factory-style finish.
- Dual LEDs with a choice of Amber, Blue or White illumination.
- The upper LED illuminates when the switch is activated; the lower LED can be wired to a separate dash-light circuit for backlighting.
- Rated at 3A at 12V for accessory control.
Wiring and installation
A fused relay is required in all installations. Do not power the accessory directly through this switch. Use the supplied wiring diagram and confirm compatibility with the accessory control circuit before connecting it.
The connector and wiring pigtail provide the switch-side connection; they are not a complete accessory wiring harness. A suitable CH4X4 marine-grade waterproof 12V 40A relay with 4-pin harness is available separately. Have a qualified installer check wiring, fuse protection and relay selection if needed.
What is included
- 1 CH4X4 Custom Square Push Switch for Toyota, laser-etched with your design.
- 1 connector with wiring pigtail.
- Wiring diagram.
Vehicle fitment
Listed applications below are subject to the vehicle’s dash opening, trim and market. This aftermarket switch is not a Toyota OEM part; compare the opening and connector requirements before installation.
- Toyota Tundra 2022+
- Toyota Sequoia 2022+
- Toyota Tacoma 2024+
- Toyota 4Runner 2025+
- Toyota Land Cruiser 300 Series 2022+
- Toyota Prado 150 Series 08/2017 – 2023
- Toyota Prado 250 Series 2024+
- Toyota RAV4 / RAV4 Hybrid 2019+
- Toyota Camry 70 Series 09/2017+
- Toyota Hiace 2019+
- Toyota Corolla 2018+
Packaged shipping size and weight: The Dimensions and Weight shown under Additional information refer to the switch in its blister packaging: 5 × 5 × 3 in and 2 oz. For the switch face dimensions, see Switch Face Size.
Frequently asked questions
Can I add my own text?
Yes. Type up to 16 characters and see it on the switch as you type. It wraps to two centered lines of up to 8 characters, and you can choose from a selection of bold fonts. This switch takes either text or an icon, not both. To match the standard lettering on our other switches, choose Myriad Pro Semibold.
Can I put an icon and text on the same switch?
No. The square face is small, so each switch carries either one icon or your text, which keeps it clean and easy to read once it is etched.
What color is my design engraved in?
The engraved icon or text has a white appearance on the matte black switch face. This is separate from the LED illumination color, which you choose as Amber, Blue or White.
Can I upload my own image or logo?
The design tool works with our icon library and typed text. If you need something that is not in the library, contact us before ordering.
What size is the switch?
The switch face measures 0.86 × 0.86 in (22 × 22 mm).
What Toyota vehicles does this switch fit?
Toyota Tundra 2022+, Toyota Sequoia 2022+, Toyota Tacoma 2024+, Toyota 4Runner 2025+, Toyota Land Cruiser 300 Series 2022+, Toyota Prado 150 Series 08/2017 – 2023, Toyota Prado 250 Series 2024+, Toyota RAV4 / RAV4 Hybrid 2019+, Toyota Camry 70 Series 09/2017+, Toyota Hiace 2019+, Toyota Corolla 2018+. Always confirm your dash opening and connector before ordering.
What is included, and do I need a relay?
Each order includes 1 custom switch, 1 connector with wiring pigtail and a wiring diagram. The switch is rated at 3A at 12V, so in all applications the accessory must be wired through a properly rated fused relay.
