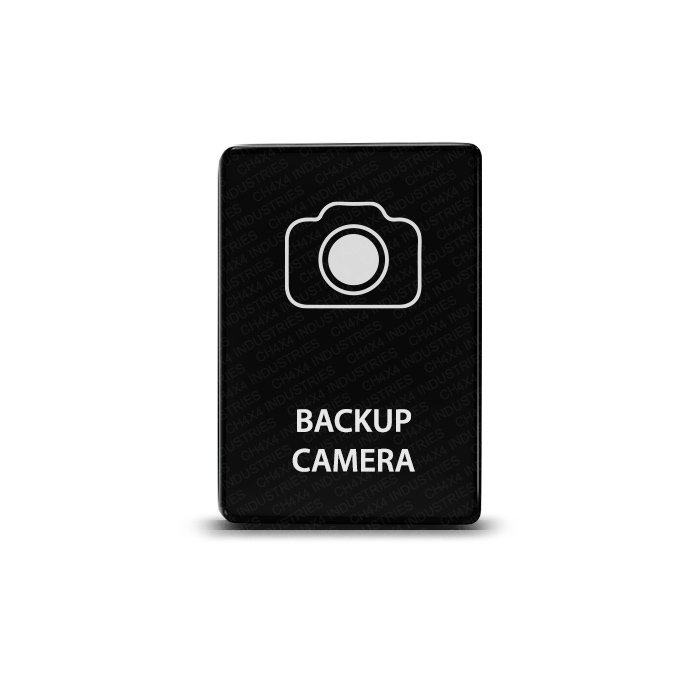

The Backup Camera Small Push switch brings a recognizable camera label to an accessory control position. Designed with a matte black face and laser-etched legend, it offers a factory look for compatible Toyota applications without leaving the circuit identified by an unmarked button.
A switch for the circuit, not the video signal
Use the Backup Camera legend to identify the relay-controlled accessory circuit in your installation. This product is an electronic ON/OFF switch, not a camera, video selector or automatic reverse trigger. The connected camera system determines its own display and operating behavior.
Before choosing a mounting location, decide which control belongs there and check the available opening. The Small Push format measures 32.5 × 22 mm, or approximately 1.28 × 0.87 inches. Appearance alone is not enough to confirm the correct switch size.
Backup Camera switch specifications
- 12V 3A rating with short circuit protection.
- Single Pole Single Throw ON/OFF operation.
- Heavy-duty ABS body and matte black hard face.
- Laser-etched camera legend.
- Upper LED illuminates when pressed IN.
- Lower LED can be wired to a separate dash-light circuit.
Compatible with Toyota models listed
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For listings marked ON, confirm your exact model year and switch opening before ordering.
The Tacoma application is limited to the center console. Check the year, intended position and opening together before selecting this OEM-style control.
Connections and supplied components
The accessory MUST be wired through a fused relay in ALL cases. Use the supplied wiring diagram for the switch and match the rest of the circuit to the connected accessory. The package includes one Small Push switch and one connector with cable, with the diagram supplied.
If you are labeling a recording-camera circuit instead, compare Dash Camera Symbol 1 to choose the appropriate legend. You can review the Small Push switch range for additional panel labels. For the vehicle’s existing controls, refer to the applicable Toyota owner’s manual; use the switch diagram for its electrical connections.
