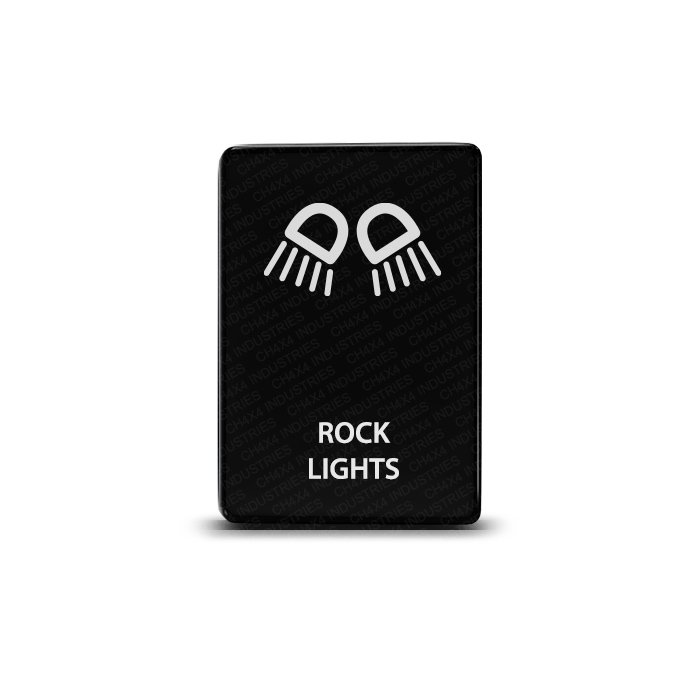

CH4x4 Small Push Switch for Toyota – Rock Lights Symbol

$23.98

Give a suitable rock-lighting circuit a dedicated Rock Lights button. The 32.5 × 22 mm laser-etched face and matte black finish match an OEM-style panel, with separate upper and lower LEDs. Rated 12V 3A ON/OFF; wire the accessory through a fused relay.

Switch LED Color

Clear

Description
Additional information

The Rock Lights push switch provides an identifiable control for a suitable auxiliary rock-lighting installation. Its named legend helps separate this lighting group from front-facing lamps or other accessories on the panel.

Rock Lights control requirements

Check the lighting equipment or controller instructions before wiring. This electronic Single Pole Single Throw switch provides ON/OFF operation, rated at 3A at 12V, with short circuit protection. It does not supply color selection, dimming or lighting-effect controls.

The accessory MUST be wired through a fused relay in ALL cases. Use the supplied switch diagram for the button and the lamp manufacturer’s requirements for the relay and load circuit.

Illumination at the switch

The upper LED turns ON when the button is pressed IN. The lower LED can connect to a separate dash-light circuit. The upper indication concerns switch position, not confirmation that every connected rock light is working.

Dimensions and construction

The OEM-style face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. A heavy-duty ABS body supports the matte black hard surface and laser-etched Rock Lights legend, creating a factory look.

Compatible with Toyota applications

Verify the vehicle year and opening. Tacoma fitment is limited to the center console. For entries marked ON, check the exact year and available switch space.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Included with your order

The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.

Rock lights, a lighting controller and a fused relay are not listed as included. Browse other Small Push lighting controls to coordinate the panel. Refer to the relevant Toyota owner’s manual for original vehicle-control information.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Rock Lights
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Rock Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
