CH4x4 Small Push Switch for Toyota – Air Compressor Symbol

$23.98

Put an identifiable compressor control in your Toyota-compatible switch panel. The CH4X4 Air Compressor Symbol Small Push switch has a 32.5 × 22 mm face, matte black ABS housing and two LEDs.

Use its SPST ON/OFF action with a properly planned circuit: the accessory must be wired through a fused relay. Connector with cable and wiring diagram included.

Switch LED Color

Clear

Description
Additional information

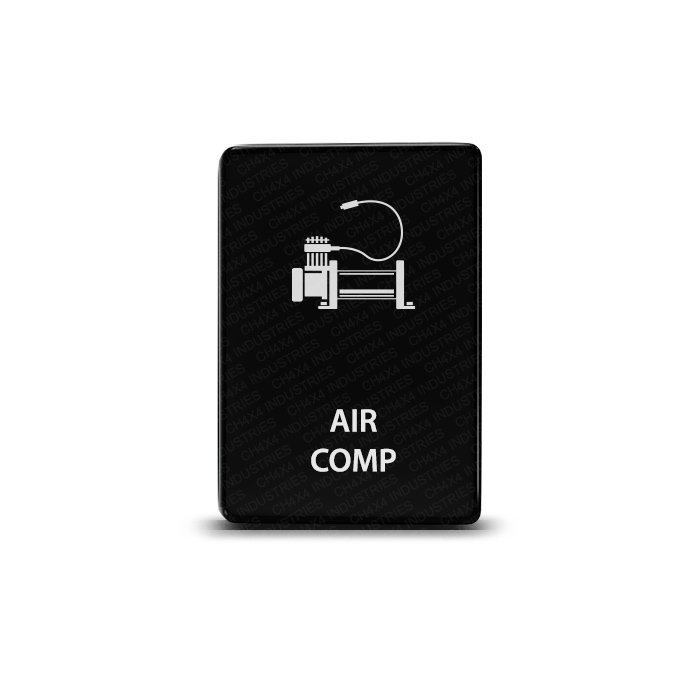

The Air Compressor Symbol Small Push switch gives your compressor control a dedicated place in a compatible Toyota interior. The laser-etched label makes its purpose clear, while the compact black face works with an OEM-style panel layout.

Air Compressor Symbol for your control panel

This is the standard artwork option in the compressor group. Its 1.28 × 0.87 in (32.5 × 22 mm) face is made for the Small Push format. The heavy-duty ABS housing has a matte black finish and a hard face with the legend engraved directly into the surface.

When planning an onboard-air layout, keep the dashboard switch and the compressor power circuit distinct. The switch supplies the ON/OFF control in your installation; it is not a compressor, pressure regulator or complete air-system kit.

Rated control, separate accessory power

The electronic switch is rated at 3A, 12V and includes short circuit protection. It uses Single Pole Single Throw ON/OFF action. All accessories MUST be wired through a fused relay. Follow the supplied diagram and the compressor equipment requirements when planning the circuit. See the relay and 5-pin harness listing for related wiring equipment.

Illumination and package contents

One upper LED turns on when the switch is pressed IN.
One lower LED can be wired to a separate dash light circuit.
One Small Push switch and one connector with cable are included.
A wiring diagram is supplied with the switch.

Compatible with Toyota switch locations

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008-ON
Toyota Corolla 2006–2013
Toyota Highlander 2008-ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For entries marked “ON,” confirm the exact model year and switch location before ordering; the designation does not verify every later generation.

The Tacoma fitment is limited to the center console. Check the intended opening and model year as well as the face size before installation.

Compare the compressor designs

For a different graphic, view Air Compressor Symbol 2 or Symbol 3. These separate listings let you choose the illustrated legend that suits your build.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Compressor
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Air Compressor Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
