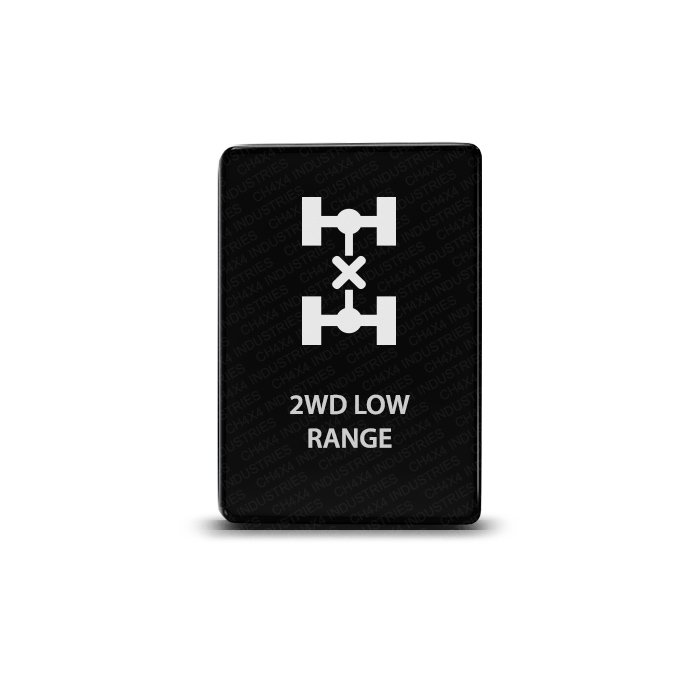

CH4x4 Small Push Switch for Toyota – 2WD Low Range Symbol

$23.98

Give your auxiliary control a clear 2WD Low Range label with this CH4X4 Small Push switch. Its laser-etched face and matte black finish bring a factory look to compatible Toyota interiors.

SPST ON/OFF operation, upper and lower LEDs, and a 12V 3A rating. The accessory must be wired through a fused relay. Check the vehicle list below before ordering.

Switch LED Color

Clear

Description
Additional information

The 2WD Low Range Small Push switch from CH4X4 combines a dedicated laser-etched legend with an OEM-style finish for select Toyota switch openings. Choose this design when the label matches the auxiliary control in your installation and you want it to sit naturally alongside the surrounding dashboard controls.

2WD Low Range control with a factory look

The matte black, heavy-duty ABS body has a hard face surface with the legend engraved directly into it. This is the standard symbol design in the Small Push family. Compare the artwork with 2WD Low Range Symbol 2 if you are choosing between the two versions; select the graphic that best suits your layout.

The symbol identifies the switch. Vehicle fitment refers to the listed switch opening and does not establish that a vehicle supports a particular drivetrain modification. Match the electrical control to your installation before wiring.

Switch action and illumination

Single Pole Single Throw (SPST) ON/OFF push switch.
Electrical rating: 3A at 12V, with short circuit protection.
One upper LED, illuminated when the switch is pressed IN.
One lower LED that can be wired to a separate dash light circuit.
Face surface: 32.5 × 22 mm (approximately 1.28 × 0.87 in).

Wiring and supplied parts

In every installation, the accessory must be wired through a fused relay. The switch rating is 3A; do not use the face legend as a guide to the load it can carry. Refer to the supplied wiring diagram and the relay with 5-pin harness listing when planning the circuit.

The kit contains one ON/OFF Small Push switch and one connector with cable. A wiring diagram is supplied with the switch.

Compatible with Toyota vehicles listed below

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Review the specified location as well as the model year, especially the Tacoma center-console restriction. Explore the Small Push Series for other control labels.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – 2WD Low Range Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
