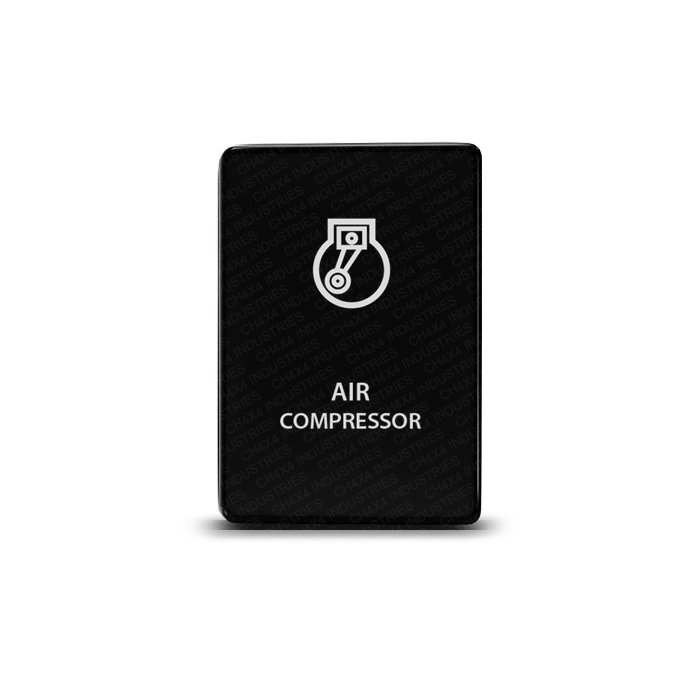

Air Compressor Symbol 3 brings the third CH4X4 compressor graphic to a compact ON/OFF switch. It is an option for builders who want the compressor label to coordinate with the other legends in a Small Push panel while retaining an OEM-style appearance.
Integrating Air Compressor Symbol 3
Begin with the location and the graphic, then plan the connections. The face measures 1.28 × 0.87 in (32.5 × 22 mm), and the housing uses heavy-duty ABS with a matte black finish. The legend is laser etched into the hard face to identify this specific design.
The existing vehicle opening must match the switch format. A compatible model name alone does not identify every switch position in that vehicle; the Tacoma listing, for example, applies to the center console only.
Installation reference for Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008-ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008-ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For entries marked “ON,” confirm the exact model year and switch location before ordering; the designation does not verify every later generation.
Control and lighting specifications
- Single Pole Single Throw ON/OFF push action.
- Electronic switch rated at 3A, 12V, with short circuit protection.
- One upper LED, ON when the switch is pressed IN.
- One lower LED, wireable to a separate dashboard light circuit.
Wire every accessory through a fused relay. The compressor load must not be treated as though it were the switch rating. Follow the included diagram and the requirements of the connected equipment. Related wiring hardware is available in the relay and harness listing.
Package and design comparison
One Small Push switch and one connector with cable are included, with a wiring diagram supplied. Air Compressor Symbol 3 identifies the graphic selection; it does not include a compressor or change the listed control specifications.
Review the standard compressor symbol and the Symbol 2 version if you are comparing artwork. Use each product image to decide which label belongs in your panel.
