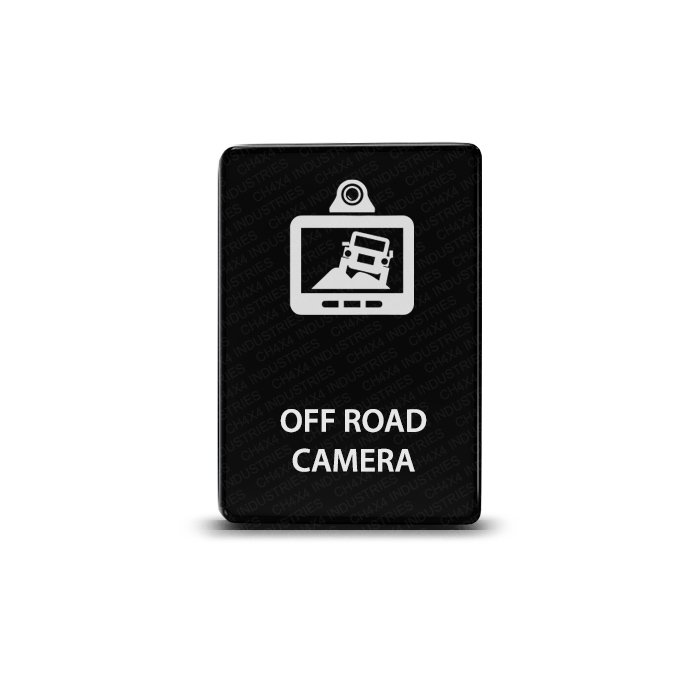

The Off Road Camera push switch labels a camera accessory circuit in your vehicle’s control panel. Its laser-etched legend separates that function from lighting controls, while a matte black face gives the added button a factory look.
Off Road Camera circuit identification
The wording describes the camera label on the switch. This product provides ON/OFF control, not a camera, video selector or recording interface. Image display and recording behavior depend on the connected camera system and its own controls.
If the circuit is specifically for a forward-view camera, compare the Front Camera legend. Choose the name that most clearly identifies the function you intend to assign to the button.
Electrical and construction details
- Electronic 12V 3A switch with short circuit protection.
- Single Pole Single Throw ON/OFF action.
- Heavy-duty ABS with a matte black hard face.
- Laser-etched Off Road Camera legend.
- Upper LED illuminates when pressed IN.
- Lower LED can connect to a separate dash-light circuit.
The upper light indicates switch position rather than a live camera feed. Follow the supplied wiring diagram when planning the upper indication and lower illumination connections.
Check the mounting opening and vehicle year
Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style Small Push format is compatible with Toyota applications listed below. Tacoma fitment applies to the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For listings marked ON, confirm your exact model year and switch opening before ordering.
Required relay and package contents
The accessory MUST be wired through a fused relay in ALL cases. Check the camera system’s power requirements separately, and match the relay, fuse and load wiring to the circuit being installed. Use the supplied switch diagram for its connections.
One Small Push switch and one connector with cable are included, with a wiring diagram supplied. Browse the Small Push Series for other panel labels, and consult the relevant Toyota owner’s manual for information about the vehicle’s original controls before choosing the added camera button’s location.
