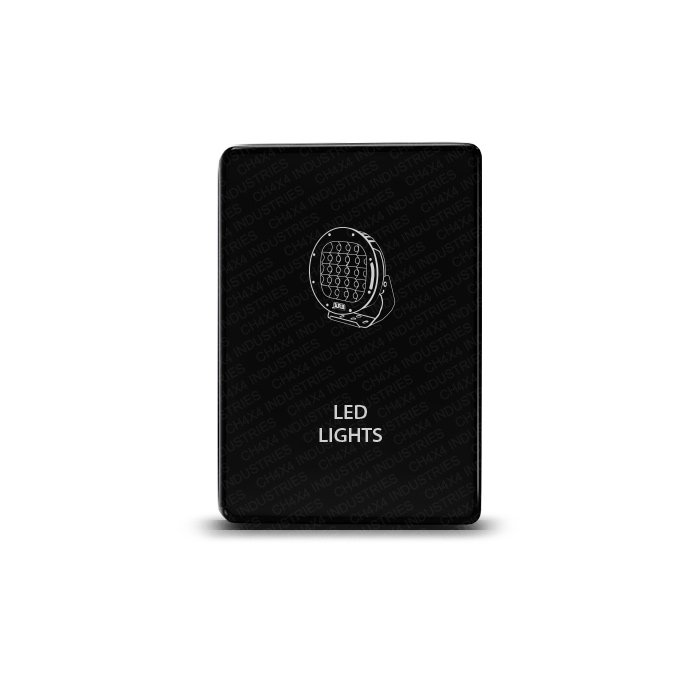

LED Lights is a general lighting legend for a clearly identified accessory circuit. This CH4x4 Small Push switch suits a panel where the button needs a readable lighting label without specifying a light bar or a particular mounting position.
A flexible label for your lighting layout
The LED Lights wording is laser etched on a matte black hard face. Choose it when that name accurately describes the circuit you are assigning to the button. If the accessory is specifically a bar, compare the LED Light Bar design for a more specific legend.
The factory-look finish helps the control blend visually with the surrounding buttons. Its heavy-duty ABS construction and Small Push format are paired with the electrical specifications listed below.
Switch action and light connections
- 12V 3A electronic switch with short circuit protection.
- Single Pole Single Throw ON/OFF control.
- Upper LED illuminates when pressed IN.
- Lower LED can connect to a separate dash-light circuit.
- Laser-etched LED Lights legend on a matte black face.
Check the face size and Toyota application
The dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style switch is compatible with Toyota mounting applications below. Confirm the vehicle year and available opening before ordering.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Tacoma fitment is restricted to the center console. Use the location restriction as well as the model name when planning your panel.
Required relay and included parts
The accessory MUST be wired through a fused relay in ALL cases. Select the relay, fuse and wiring for the actual lamp load, then follow the supplied diagram for the switch connections. This button provides ON/OFF control rather than dimming or color selection.
The package includes one Small Push ON/OFF switch and one connector with cable, and a wiring diagram is supplied. Review the relay with 5-pin harness specifications as part of the circuit planning.
Refer to the applicable Toyota owner’s manual for original vehicle controls. Choose a layout that makes the LED Lights button easy to distinguish from other accessory functions.
