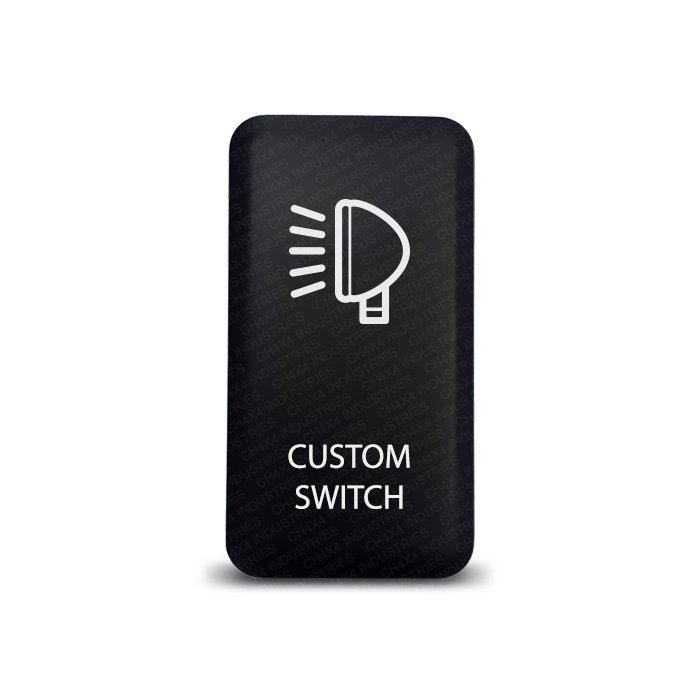

Create a switch that is uniquely yours with the CH4X4 Custom Large Push Switch for Toyota. Designed for compatible Toyota factory switch openings, this 39 mm x 21 mm (1.54″ x 0.83″) custom 12V push switch combines a clean factory-style fit with your own personalized laser-etched graphic, icon, symbol, or text.
Whether you need a custom switch for off-road lights, auxiliary lighting, air compressors, lockers, recovery equipment, camping accessories, communications, or other 12V vehicle accessories, CH4X4 gives you the ability to create a switch specifically for your setup while maintaining a clean, professional appearance inside your Toyota.

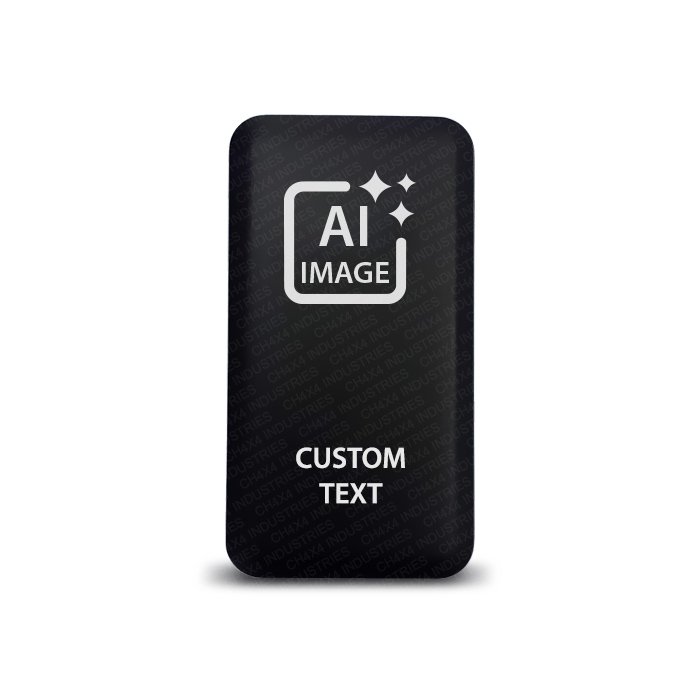

AI-Powered Custom Switch Design
Creating your Custom Toyota Push Switch is easy. Simply describe the icon, symbol, text, or idea you want on your switch, or upload a reference image. Our AI-powered custom design system will generate three design options based on your request so you can select the version you prefer.
For the best results, provide a detailed and specific description of the design you want. The more information you provide about the graphic, text, layout, or intended accessory, the better the AI can interpret your idea.
After your order is placed, the CH4X4 team personally reviews your selected design before production. If we determine that an adjustment is necessary to achieve a better laser-etched result, we will contact you for approval before manufacturing your custom switch.
Our AI custom design system is experimental and continuously being improved as we develop new features and optimize the design process.
Factory-Style Fit for Toyota
The CH4X4 Custom Large Toyota Push Switch is designed to install into compatible Toyota factory switch openings, providing a secure fit and an integrated appearance without the look of a generic aftermarket toggle switch.
Switch Face Size:
1.54″ x 0.83″ (39 mm x 21 mm)
Please verify your vehicle’s switch opening before ordering. Toyota switch sizes and locations can vary depending on model, year, trim level, and dashboard position.
Custom Laser-Etched Graphics
Your selected custom design is precision laser etched directly into the switch face using professional laser engraving equipment.
The graphic is not a sticker, decal, or surface-applied print. Laser etching provides a crisp, professional design while allowing the switch illumination to shine through the engraved graphic for excellent nighttime visibility.
Create your switch with a custom icon, accessory symbol, text, lettering, or a combination designed specifically for your Toyota and your vehicle setup.
Heavy-Duty Construction
Manufactured from heavy-duty ABS plastic, the switch features a durable matte black finish designed to complement Toyota interior switch panels and provide a clean factory-style appearance.
The switch uses a Single Pole Single Throw (SPST) ON/OFF configuration and is designed for controlling automotive 12V accessories through a properly installed relay.
Dual LED Illumination
The switch features two independently wired LED illumination functions:
- Upper LED: Illuminates when the switch is pressed ON, providing a clear visual indication that the accessory has been activated.
- Lower LED: Can be connected independently to the vehicle’s dash illumination circuit, providing convenient backlighting and nighttime visibility.
This dual-illumination configuration provides both accessory status indication and factory-style dash backlighting.
Features
- AI-powered custom switch design
- Create your own graphic, icon, symbol, or text
- Three AI-generated custom design options to choose from
- CH4X4 team review before production
- Precision laser-etched custom graphics
- Large Toyota-style push switch
- 1.54″ x 0.83″ (39 mm x 21 mm) switch face
- Designed to fit compatible Toyota factory switch openings
- Heavy-duty ABS plastic construction
- Matte black factory-style finish
- SPST ON/OFF operation
- Dual LED illumination – ON indicator and dash backlight
- Rated at 3A / 12V
- Matching connector with pre-wired pigtail included
- Wiring diagram included
- Designed for relay-controlled 12V automotive accessories
Important Electrical Information
This switch is rated at 3 amps at 12 volts and is designed to control the trigger circuit of a properly rated automotive relay.
In all applications, the accessory MUST be wired through a properly rated fused relay. Do not power high-current accessories directly through the switch.
This is especially important when controlling LED lighting, light bars, air compressors, recovery equipment, or other accessories with higher current requirements.
Kit Includes
- 1 CH4X4 Custom Large Push Switch for Toyota
- 1 Matching connector with pre-wired wiring pigtail
- Wiring diagram
Vehicle Compatibility
Designed for compatible factory switch openings in select Toyota vehicles, including:
- Toyota FJ Cruiser: 2007–2014
- Toyota Fortuner: 2005–2014
- Toyota Hilux: 2005–2014
- Toyota Tacoma: 2005–2011
- Toyota Tacoma: 2012–2016 (Left Side Only)
- Toyota Highlander: 2001–2007
- Toyota Tundra: 2005–2006 (Center Console, if equipped)
- Toyota 4Runner: 2003–2009
- Toyota Prado 120 Series: 2003–2009
- Toyota Land Cruiser 100 Series: 1998–2007
- Toyota Land Cruiser 75, 76, 78 & 79 Series
Important: Toyota switch openings can vary by model, year, trim level, and switch location. Please confirm that your vehicle uses the 39 mm x 21 mm Large Push Switch opening before ordering.
Create Your Own Custom Toyota Push Switch
From off-road lighting and recovery equipment to overland accessories, compressors, communications, and unique vehicle functions, the CH4X4 Custom Large Push Switch for Toyota gives you a professional way to control your 12V accessories with a switch personalized specifically for your vehicle and your build.
Your accessory. Your graphic. Your switch.
Frequently Asked Questions
Can I add text to my custom design?
Yes — this switch supports both a symbol and text (or either on its own). Just describe what you want in the design box.
What color is my design engraved in?
All designs are laser-etched in white, regardless of the subject’s real-life color, for consistent visibility and contrast on the black switch face.
How does the AI design process work?
Describe the icon, text, or idea you want, or upload a reference photo. Our AI generates 3 custom design options for you to choose from. Our team personally reviews your selected design before production — if any adjustments are needed, we’ll email you a revised version for approval before it’s produced and shipped.
What size is the Large Push switch?
The switch face measures 1.54" x 0.83" (39 mm x 21 mm).
What Toyota vehicles does this switch fit?
Toyota FJ Cruiser 2007–2014, Fortuner 2005–2014, Hilux 2005–2014, Tacoma 2005–2011, Tacoma 2012–2016 (left side only), Highlander 2001–2007, Tundra 2005–2006 (center console if equipped), 4Runner 2003–2009, Prado 120 Series 2003–2009, Land Cruiser 100 Series 1998–2007, and Land Cruiser 75/76/78/79 Series.
What’s included, and do I need a relay?
Each order includes 1 Custom Large Push Switch, 1 matching connector with pre-wired pigtail, and a wiring diagram. This switch is rated at 3 amps / 12V — in all applications, accessories must be wired through a properly rated fused relay.
