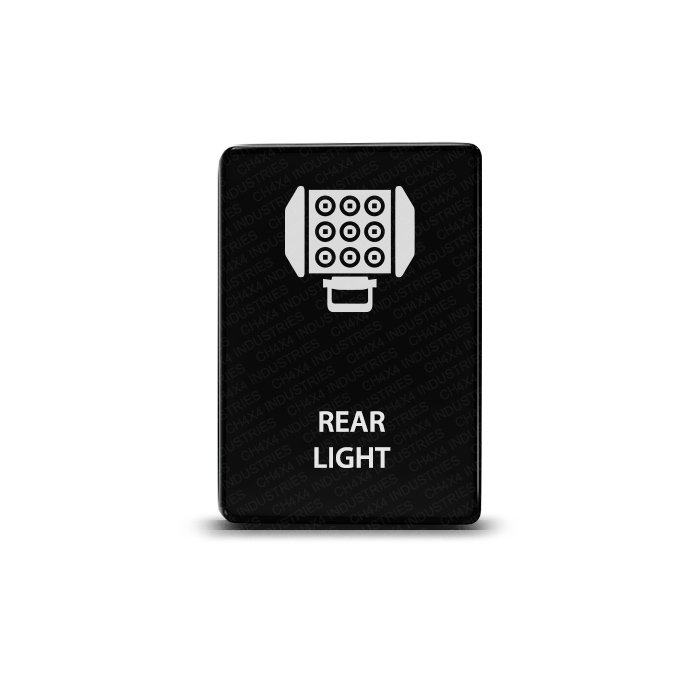

The Rear Light push switch gives a suitable rear-facing auxiliary-lighting installation its own marked button. This listing uses SKU CH4X4-TOY-REAL2-SML; compare that identifier and the gallery when choosing among similarly named rear-light controls.
Rear Light installation checks
Plan the circuit around the connected lamps and their instructions. The accessory MUST be wired through a fused relay in ALL cases. Do not assume the button can carry the complete lamp load because the lighting system uses a 12V supply.
Switch specifications
- Electronic Single Pole Single Throw ON/OFF switch, rated at 3A at 12V.
- Short circuit protection.
- Heavy-duty ABS body and matte black hard face.
- Laser-etched legend.
- Face size: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
The upper LED turns ON when the switch is pressed IN. A lower LED can be wired to a separate dash-light circuit using the supplied diagram. The upper indicator shows the button state, not confirmed lamp operation.
Factory-look mounting
Check the vehicle year and existing switch opening before ordering. The OEM-style face is intended for the listed mounting applications; it does not establish a direct connection to original rear-light wiring.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Tacoma fitment is center console only. For Sequoia and Highlander entries marked ON, confirm the exact model year and switch space.
Package contents
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
The Rear Light item supplies the control button and connector. Lamps and a fused relay are not listed as included, and no automatic reverse-trigger function is specified.
Explore other Small Push lighting controls for the surrounding panel. For information about the vehicle’s original controls, refer to the relevant Toyota owner’s manual.
