CH4x4 Small Push Switch for Toyota – Power Symbol 2

$23.98

Build your panel around the Power Symbol 2 artwork with a compact, matte black control. Compatible with the listed Toyota mounting applications, this 32.5 × 22 mm Small Push switch offers 12V 3A ON/OFF action and separate upper and lower LEDs; use a fused relay for the accessory.

Switch LED Color

Clear

Description
Additional information

Power Symbol 2 offers an alternative general-power design for a Small Push control position. Select this version when its artwork suits your panel layout, then match the electrical circuit to the accessory you intend to operate. The symbol identifies the button without tying it to one particular type of equipment.

Choosing the Power Symbol 2 design

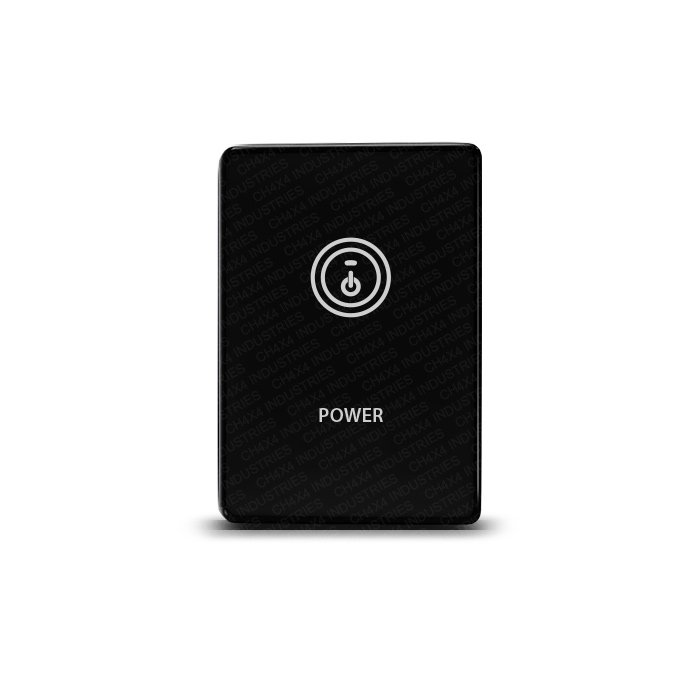

The legend is laser etched into a matte black hard face. A heavy-duty ABS body and OEM-style proportions give the switch a factory look. Its face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches; check the available opening rather than choosing by appearance alone.

Compare the standard Power Symbol if you are deciding between graphics. Power Symbol 2 names this artwork option, not a second electrical output or a different current rating.

What happens when you press the button?

The electronic switch uses Single Pole Single Throw ON/OFF action and is rated at 3A at 12V, with short circuit protection. Its upper LED comes on when the button is pressed IN. The lower LED can be wired independently to a separate dash-light circuit, following the supplied wiring diagram.

The accessory MUST be wired through a fused relay in ALL cases. Select the relay, fuse and cable for the actual load. The power marking does not mean the switch can directly handle every 12V accessory.

Vehicle fitment

This Small Push switch is compatible with Toyota applications listed below. Confirm the year and mounting position; the Tacoma entry covers the center console only.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Package and installation planning

Included are one Small Push ON/OFF switch and one connector with cable, plus the supplied wiring diagram. Identify the intended accessory circuit before wiring the Power Symbol 2 button. Refer to the appropriate Toyota owner’s manual for the vehicle’s original control layout.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Power Symbol 2 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
