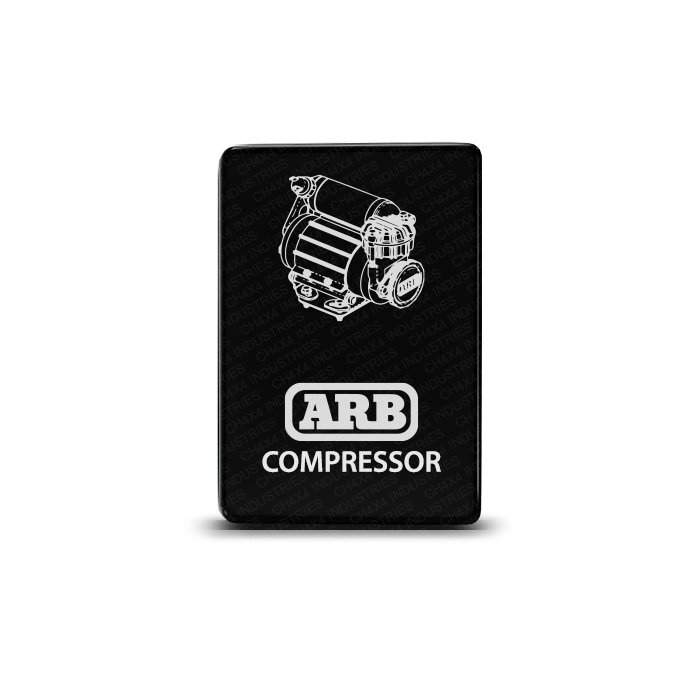

CH4x4 Small Push Switch for Toyota – ARB Compressor Symbol

$23.98

Mark your compressor-control button with the ARB Compressor legend. This CH4x4 Small Push switch uses a matte black 32.5 × 22 mm face, laser-etched marking and two LEDs. Rated 12V 3A ON/OFF; verify the compressor’s control requirements and use a fused relay.

Switch LED Color

Clear

Description
Additional information

The ARB Compressor push switch labels a suitable compressor-control circuit with an identifiable panel legend. This is a CH4x4 Small Push switch; choosing the graphic does not by itself confirm a direct connection to a particular compressor harness.

Plan the ARB Compressor connection

Match the compressor system’s control requirements to the published switch specification: electronic Single Pole Single Throw ON/OFF, rated at 3A at 12V, with short circuit protection.

In ALL cases, the accessory MUST be wired through a fused relay. Follow the compressor manufacturer’s installation instructions for the control and load circuits, and use the supplied diagram to identify the switch connections. Compressor motor current must not pass directly through the button.

Illumination at the panel

The upper LED turns ON with the button pressed IN. The lower LED can connect to a separate dash-light circuit. This arrangement distinguishes switch-state illumination from the panel-light connection; it does not provide air-pressure or compressor-fault feedback.

OEM-style fit and finish

The face is 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Heavy-duty ABS construction, a matte black hard surface and a laser-etched ARB Compressor legend give the control a factory look.

Compatible with Toyota mounting locations

Verify the opening and model year before ordering. Tacoma uses the center-console position only. For entries marked ON, check your exact year and switch space.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Supplied parts

The listed package contains one Toyota Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied. Compressor equipment and a fused relay are separate from these listed contents.

Review the Small Push series for other panel legends. Consult the relevant Toyota owner’s manual to identify original vehicle controls while planning the layout.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Compressor
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – ARB Compressor Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
