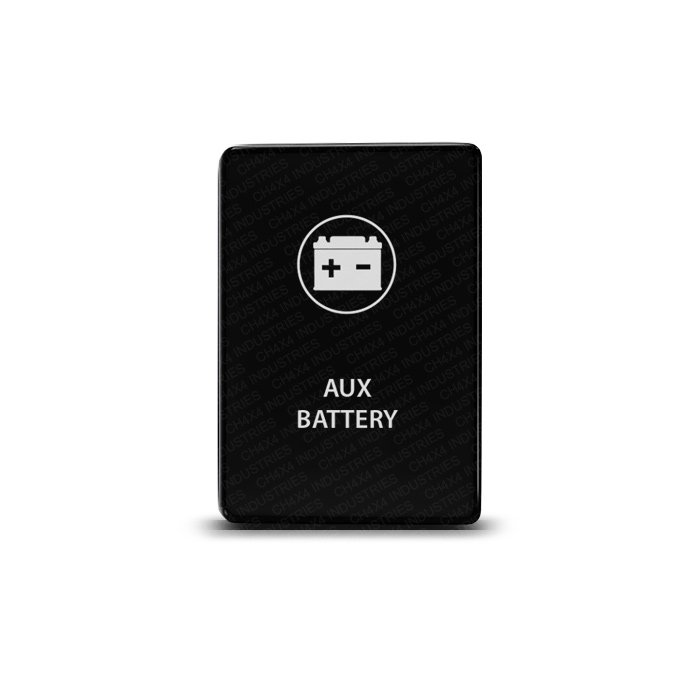

CH4x4 Small Push Switch for Toyota – Auxiliary Battery Symbol

$23.98

Give your auxiliary-power control its own Auxiliary Battery label. This CH4X4 Small Push switch combines an engraved legend, matte black ABS and dual LEDs in an OEM-style format for compatible Toyota locations.

Rated 3A at 12V with SPST ON/OFF action. Every accessory must be connected through a fused relay. Includes the switch, connector with cable and wiring diagram.

Switch LED Color

Clear

Description
Additional information

The Auxiliary Battery Small Push switch from CH4X4 labels the control associated with your auxiliary-power installation. Its dedicated legend makes the intended circuit identifiable while a matte black face preserves a factory look in compatible Toyota panels.

Start with the control circuit

This is a 3A, 12V electronic ON/OFF switch, not a battery or a high-current battery isolator. The Auxiliary Battery legend identifies your chosen control; it does not establish charging capability or change the electrical limit of the switch.

In every application, the accessory MUST be wired through a fused relay. Follow the supplied wiring diagram and the requirements of the auxiliary equipment. Review the relay with 5-pin harness listing when selecting related wiring hardware.

Auxiliary Battery switch specifications

Single Pole Single Throw (SPST) ON/OFF push action.
3A at 12V, with short circuit protection.
One upper LED that illuminates when the switch is pressed IN.
One lower LED that can be wired to a separate dashboard light circuit.
Heavy-duty ABS housing with a hard matte black face.
Legend laser etched directly into the switch surface.
Face size: 32.5 × 22 mm (approximately 1.28 × 0.87 in).

Match the Toyota installation position

The OEM-style format is intended for existing switch spaces in the vehicles below. Check the model year and the specific location before ordering; the Tacoma application is restricted to the center console.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Supplied components and panel planning

The package contains one ON/OFF Small Push switch and one connector with cable, with a wiring diagram supplied. Plan the label, illumination wiring and relay-controlled circuit together so that the panel identifies the equipment it actually operates.

For additional legends to coordinate with this control, browse the Small Push Series. Choose each label for its intended circuit while checking the specifications of that product.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Auxiliary Battery Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
