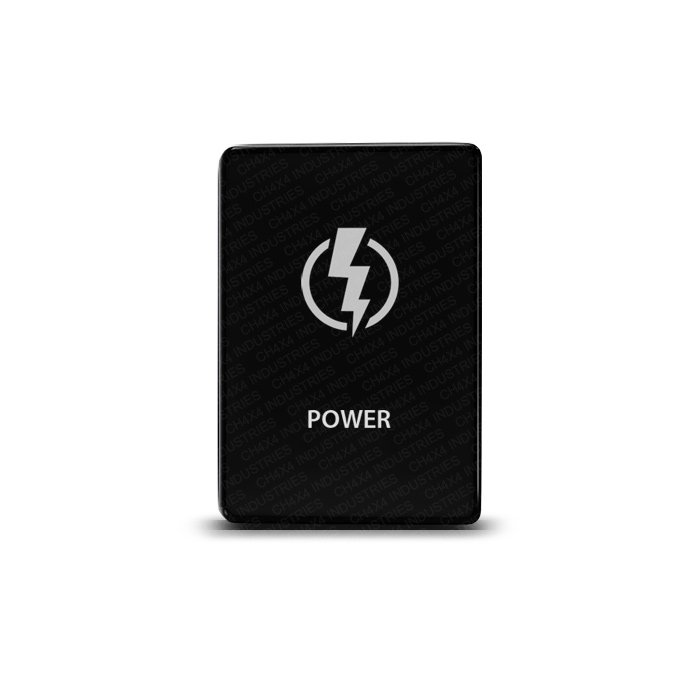

The Power Symbol push switch provides a general-purpose label for a suitably designed 12V accessory-control circuit. It suits a panel where a simple power marking makes more sense than a dedicated light, compressor or camera legend. The matte black face maintains a factory look alongside existing controls.
Power Symbol control and electrical requirements
This is an electronic Single Pole Single Throw ON/OFF switch rated at 3A at 12V, with short circuit protection. The accessory MUST be wired through a fused relay in ALL cases. The switch rating is not permission to run a higher-current accessory directly through the button.
Choose the relay, fuse and wiring for the equipment being controlled, and follow the supplied switch diagram. A general power label does not establish compatibility with every accessory or its control electronics.
Face, material and two LED circuits
- Face dimensions: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS body with a matte black hard surface.
- Power Symbol legend laser etched directly onto the face.
- Upper LED illuminates when the switch is pressed IN.
- Lower LED can be connected to a separate dash-light circuit.
Compatible with Toyota mounting applications
Match the vehicle year and available opening before installation. This OEM-style Small Push format uses the listed mounting applications; Tacoma installation is limited to the center console. The fitment list concerns the switch location, not the accessory connected to it.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Included parts and label selection
The package contains one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied to guide the switch connections.
Use the Small Push Series to compare dedicated accessory legends with this Power Symbol option. The relevant Toyota owner’s manual can help identify original vehicle controls when planning the panel layout.
