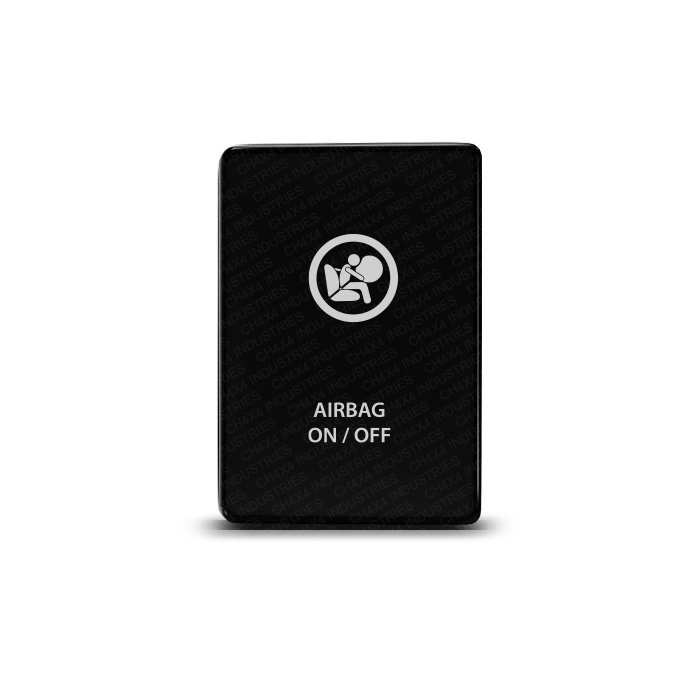

CH4x4 Small Push Switch for Toyota – Air Bag Symbol

$23.98

A dedicated Air Bag legend makes this CH4X4 Small Push design easy to distinguish in a custom control panel. Matte black ABS and upper/lower LEDs complement the factory look of the listed Toyota interiors.

Single Pole Single Throw ON/OFF, rated 12V 3A. Includes a connector with cable and wiring diagram. All accessories must use a fused relay.

Switch LED Color

Clear

Description
Additional information

The CH4X4 Air Bag symbol Small Push switch is a labeled ON/OFF control compatible with Toyota vehicles in the fitment list below. Its engraved face identifies the selected control while the matte black housing keeps the panel visually consistent with an OEM-style interior.

Identify the control before installation

Choose the Air Bag legend to match the label required by your accessory installation. This product listing describes a 12V accessory switch; the graphic alone does not establish compatibility with an airbag or restraint system. Match the control requirements to the electrical specifications and supplied diagram.

The symbol is laser etched directly into the hard black face. Heavy-duty ABS construction provides the housing, and the face surface measures 32.5 × 22 mm (approximately 1.28 × 0.87 in). Confirm the existing switch location before ordering.

Two LEDs with distinct roles

The upper LED turns ON when the switch is pressed IN.
The lower LED can be wired to a separate dashboard lighting circuit.
The switch action is Single Pole Single Throw (SPST) ON/OFF.
The electronic switch is rated at 3A, 12V, with short circuit protection.

Plan a relay-controlled circuit

The accessory MUST be wired through a fused relay in all cases. A descriptive legend does not change the 3A rating. Review the supplied wiring diagram and choose the wiring arrangement for the accessory, using the relay with harness product information as a related reference.

Vehicle and location reference

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

The Tacoma entry applies to the center console only. Match both the vehicle year and the intended position; do not assume that every blank in the same dashboard uses the same format.

Included with the Air Bag design

The package contains one ON/OFF Small Push switch and one connector with cable. A wiring diagram accompanies the switch. For other legends in this format, visit the Small Push Series.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Air Bag Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
