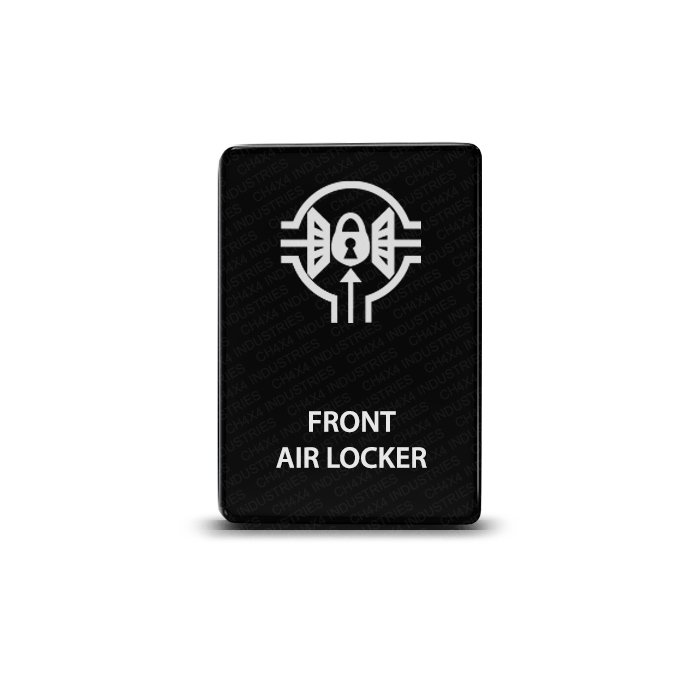

The Front Air Locker push switch gives a suitable locker-control installation a clearly identified front-axle button. Its marked face helps distinguish this control from a rear-locker or compressor button when several accessories share the panel.
Front Air Locker interface checks
Verify the locker manufacturer’s electrical control requirements before connecting the switch. The published arrangement is electronic Single Pole Single Throw ON/OFF, rated at 3A at 12V, with short circuit protection.
The accessory MUST be wired through a fused relay in ALL cases. The label does not guarantee a direct match with a particular locker harness, and the switch does not include the pneumatic or mechanical locking equipment.
Indicator behavior
The upper LED is ON when the button is pressed IN. It indicates switch position rather than confirmed axle-locker engagement. The lower LED may be wired to a separate dash-light circuit, following the supplied diagram.
Panel fit and construction
The 32.5 × 22 mm face, approximately 1.28 × 0.87 inches, combines a matte black hard surface with a laser-etched Front Air Locker legend. Heavy-duty ABS construction supports an OEM-style factory look.
Compatible with Toyota mounting applications
Check the year and available switch opening. Tacoma fitment is center console only. For entries marked ON, confirm the exact year and mounting space. This list concerns physical mounting, not locker-system compatibility.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Package contents
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
A locker, compressor, system interface and fused relay are not listed as included. Compare other Small Push controls for your layout. The relevant Toyota owner’s manual provides information about original vehicle controls.
