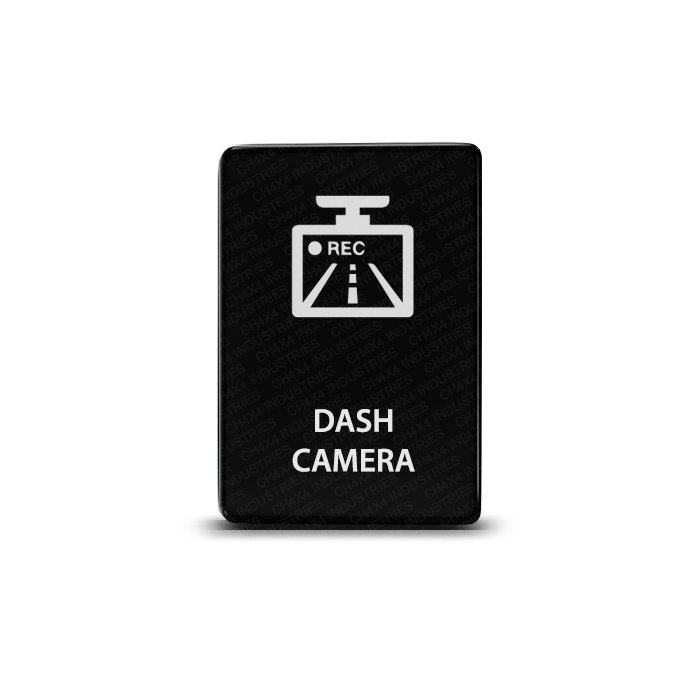

CH4x4 Small Push Switch for Toyota – Dash Camera Symbol 2

$23.98

Choose Dash Camera Symbol 2 when this artwork best suits your camera-control position. The laser-etched Small Push switch has a 32.5 × 22 mm matte black face, two LEDs and 12V 3A SPST ON/OFF action for listed Toyota applications; the accessory must use a fused relay.

Switch LED Color

Clear

Description
Additional information

Choose Dash Camera Symbol 2 to label a camera accessory circuit with this specific CH4x4 design. A laser-etched legend and matte black finish give the button an OEM-style appearance, helping the added control fit visually into a factory-look panel.

Start with the circuit and mounting position

This Small Push switch measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Confirm the intended opening before ordering, then check the vehicle list below. The Tacoma application is for the center console only; the model name alone does not establish fit at every switch position.

Compatible with Toyota vehicles listed

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For listings marked ON, confirm your exact model year and switch opening before ordering.

Dash Camera Symbol 2 electrical details

The control is an electronic 12V 3A Single Pole Single Throw ON/OFF switch with short circuit protection. It is made from heavy-duty ABS with a matte black hard face. The upper LED illuminates when the switch is pressed IN, and the lower LED can connect to a separate dash-light circuit.

Plan these two light connections using the supplied wiring diagram. The LEDs indicate the switch and dash-light connections; they do not verify whether the connected camera is recording.

Compare the legend, then plan the wiring

Dash Camera Symbol 2 denotes the artwork selection, not a different recording feature. Compare the Symbol 1 design or the Symbol 3 version to choose the camera label you prefer. This item supplies switch control, not a camera or video interface.

The accessory MUST be wired through a fused relay in ALL cases. Match the load wiring, fuse and relay to the camera accessory circuit, and consult the camera’s own requirements when deciding how it should receive power.

What comes in the package

One Small Push switch and one connector with cable are included; a wiring diagram is supplied. Use that diagram for the button’s connections. For information about original vehicle controls, refer to the applicable Toyota owner’s manual while planning where the added switch will sit.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Dash Camera Symbol 2 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
