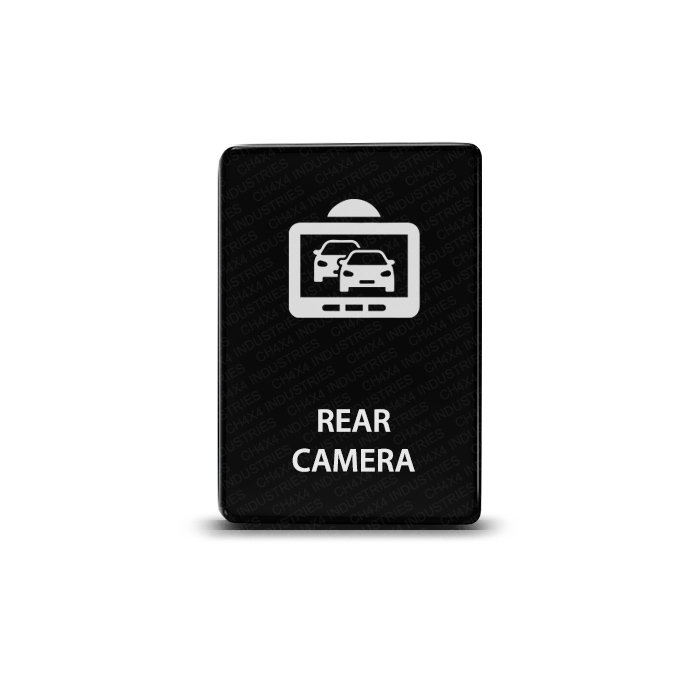

The Rear Camera Symbol 4 Small Push switch combines a dedicated camera legend with a compact OEM-style control face. It helps identify a rear-camera circuit without leaving an unmarked button among your accessory controls. Match the pictured design to your preferred panel layout.
Will Rear Camera Symbol 4 fit my panel?
The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Check the mounting opening as well as the vehicle year. This format is compatible with Toyota applications below, with Tacoma fitment restricted to the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For Sequoia and Highlander entries marked ON, confirm the exact year and opening. The mounting list does not establish electrical compatibility with the vehicle’s original camera or display.
Operation and illumination explained
This electronic Single Pole Single Throw ON/OFF switch carries a 3A rating at 12V and has short circuit protection. The upper LED lights when the switch is pressed IN; the lower LED can be wired to a separate dash-light circuit.
Use the supplied diagram for these connections. A lit upper LED represents switch position, not a verified camera signal. Rear Camera Symbol 4 identifies the selected graphic and does not indicate four camera channels.
Plan around your camera equipment
The accessory MUST be wired through a fused relay in ALL cases. Verify the camera’s supply voltage, the display’s input requirements and whether ON/OFF switching is suitable for the intended control circuit. The button does not convert or route video.
Materials and supplied parts
The heavy-duty ABS body has a matte black hard surface, with the legend laser etched directly onto the face for a factory look. The listed package includes one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied; camera equipment is separate.
Compare Rear Camera Symbol 2 if another graphic better matches your panel. The relevant Toyota owner’s manual provides a reference for original vehicle controls before installing Rear Camera Symbol 4.
