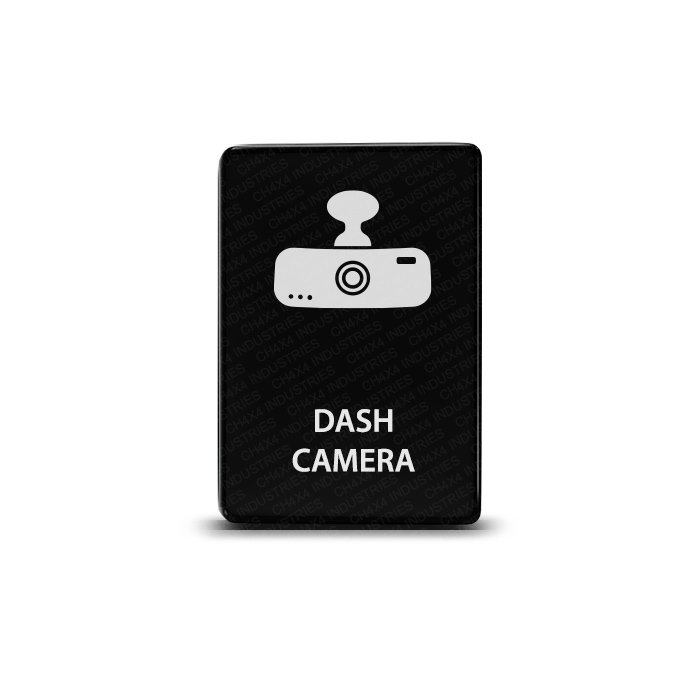

Dash Camera Symbol 3 is the third named artwork option in this group of CH4x4 camera switches. It puts a dedicated camera legend on a matte black Small Push button, offering a factory look for the Toyota applications listed below.
Identify the accessory without crowding the panel
The laser-etched Dash Camera Symbol 3 legend marks the circuit assigned to this button. Choose the artwork by comparing the product image with Symbol 1 and Symbol 2. These design names do not represent recording modes or included camera equipment.
The switch supplies ON/OFF control for an accessory circuit wired through a relay. Camera recording behavior, video connections and any parking functions depend on the connected camera system, not the printed legend.
Specifications at a glance
- Dimensions: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
- 12V 3A electronic switch with short circuit protection.
- Single Pole Single Throw ON/OFF operation.
- Heavy-duty ABS construction with a matte black hard face.
- Upper LED illuminates when pressed IN.
- Lower LED can be connected to a separate dash-light circuit.
The two LED connections let you plan the button indication and lower illumination separately. Follow the supplied wiring diagram rather than assuming the switch lights confirm the camera’s recording status.
Compatible with Toyota: check year and location
Match the vehicle below and verify the available opening for this OEM-style Small Push format. The Tacoma listing applies to the center console only.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For listings marked ON, confirm your exact model year and switch opening before ordering.
Prepare the required installation parts
The accessory MUST be wired through a fused relay in ALL cases. Select a suitable relay, fuse and load wiring for the connected accessory and follow its requirements as well as the switch diagram.
The package includes one Small Push switch and one connector with cable, with a wiring diagram supplied. For the vehicle’s existing controls, consult the relevant Toyota owner’s manual. Browse the Small Push Series if you need other accessory legends to complete the panel.
