CH4x4 Small Push Switch for Toyota – Dash Camera Symbol 1

$23.98

Identify a dash-camera accessory circuit with the Dash Camera Symbol 1 legend. This OEM-style Small Push button combines a matte black finish, dual LEDs and 12V 3A ON/OFF operation in a 32.5 × 22 mm format, compatible with the Toyota applications listed below and requiring a fused relay.

Switch LED Color

Clear

Description
Additional information

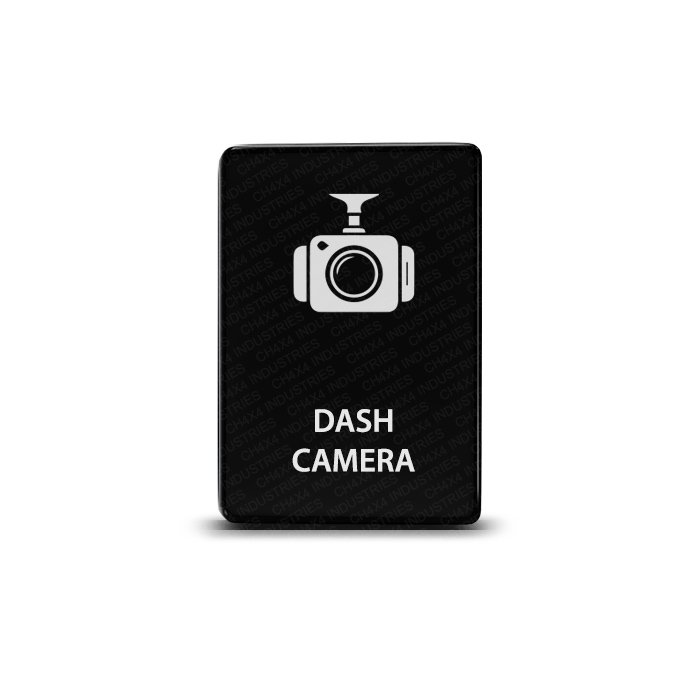

Dash Camera Symbol 1 gives your camera accessory circuit a dedicated legend in the CH4x4 Small Push format. The matte black face supports a factory look, while the laser-etched design distinguishes the button from lighting and other accessory controls.

Choosing Dash Camera Symbol 1

Symbol 1 identifies this artwork option. Compare the product image with Dash Camera Symbol 2 and Symbol 3 before choosing the label for your panel. The symbol number is a design identifier, not a recording mode or a camera specification.

This product is an ON/OFF switch for a relay-controlled accessory circuit. It does not add recording, parking-monitoring or video functions to a camera. Check the camera system’s requirements separately when planning how the circuit will operate.

Switch construction and indication

Electronic 12V 3A switch with short circuit protection.
Single Pole Single Throw ON/OFF action.
Heavy-duty ABS with a matte black hard face.
Laser-etched Dash Camera Symbol 1 legend.
Upper LED illuminates when pressed IN.
Lower LED can connect to a separate dash-light circuit.

Match the Small Push opening

The dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style control is compatible with Toyota applications listed below. Verify the opening as well as the year range; Tacoma fitment is limited to the center console.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For listings marked ON, confirm your exact model year and switch opening before ordering.

Included parts and required relay

One Small Push switch and one connector with cable are included, with a wiring diagram supplied. The accessory MUST be wired through a fused relay in ALL cases. Choose the load wiring, relay and fuse around the actual accessory, and follow the diagram for the switch connections.

For information about the vehicle’s original controls, use the relevant Toyota owner’s manual. When arranging additional accessory labels, the Small Push Series provides other legends to compare in the same product family.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Dash Camera Symbol 1 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
