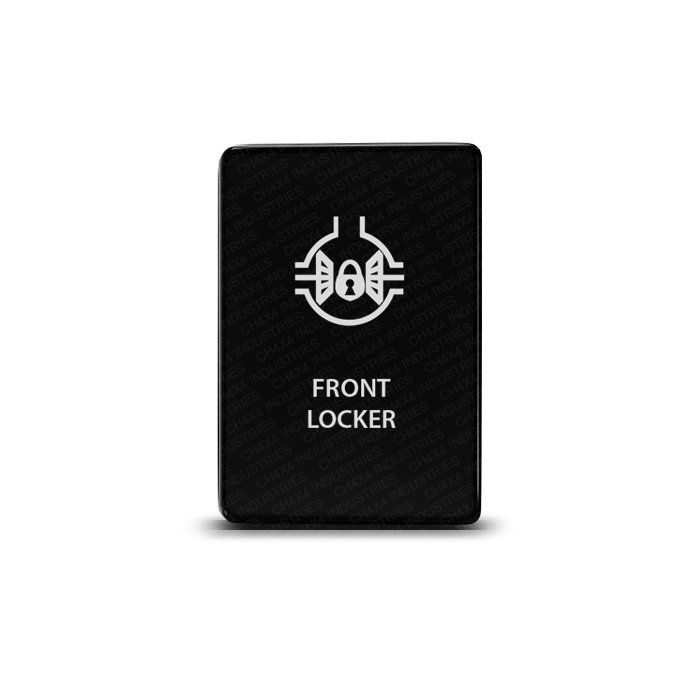

The Front Locker push switch gives your panel a dedicated label for a front-locker accessory circuit. A laser-etched legend on the matte black face identifies this control separately from lighting or camera buttons, while the Small Push format maintains a factory look.
Match the control to the locker system
This is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection. The Front Locker legend does not establish compatibility with every locker’s electrical controls. Check the connected system’s requirements before choosing the switch and planning its circuit.
The upper LED illuminates when the button is pressed IN. It indicates that switch position, not confirmed mechanical engagement of a differential lock. The lower LED can be wired to a separate dash-light circuit.
Construction and face dimensions
Heavy-duty ABS forms the switch body and matte black hard face. The legend is laser etched. Face size is 32.5 × 22 mm, approximately 1.28 × 0.87 inches; verify the opening at the intended mounting position before assembly.
Compatible with Toyota mounting applications
The following list covers the stated switch fitment, with Tacoma limited to the center console. Confirm the vehicle year as well as the physical opening for this OEM-style format.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Relay requirement and included components
The accessory MUST be wired through a fused relay in ALL cases. Follow the supplied switch wiring diagram and the locker system’s instructions when selecting the circuit components. The 3A button rating is separate from the requirements of the connected equipment.
The package includes one Small Push ON/OFF switch and one connector with cable, and a wiring diagram is supplied. Review the relay with 5-pin harness specifications when planning the required parts.
Other labels in the Small Push Series can help you distinguish surrounding accessory circuits. Consult the relevant Toyota owner’s manual for information about original vehicle controls. Choose the Front Locker legend for an appropriately designed circuit with a clearly understood function.
