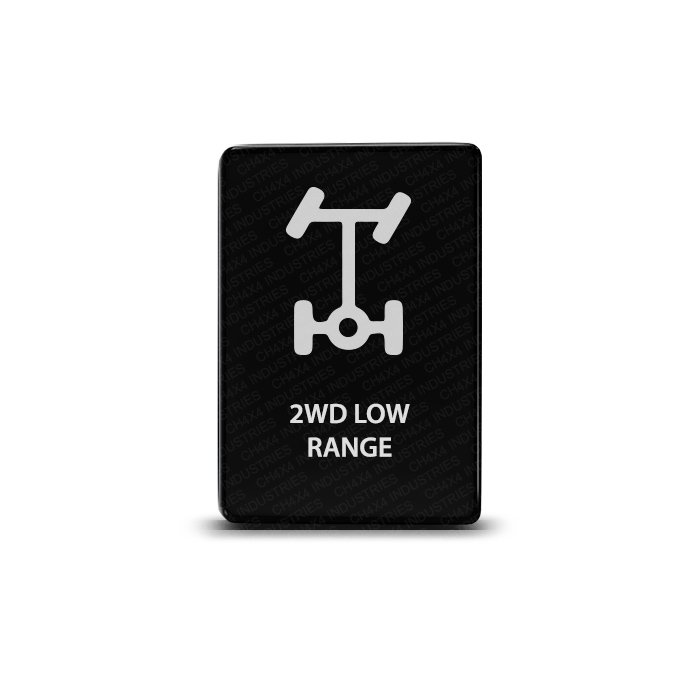

2WD Low Range Symbol 2 is the alternative-design CH4X4 Small Push switch for a clearly identified auxiliary control. Start with the graphic: this listing is for Symbol 2, so compare the product image with your intended panel layout before selecting an LED color.
Choosing 2WD Low Range Symbol 2
A dedicated legend helps distinguish one control from the next when several switches share a panel. The design is laser etched directly into a matte black, heavy-duty ABS face, bringing a factory look to compatible Toyota interiors. For the other artwork option, see the standard 2WD Low Range design.
The legend is an identification choice. It does not by itself add a drivetrain function or confirm that a particular vehicle supports a modification. The compatibility list below describes the switch fitment.
Electrical layout at a glance
This electronic switch uses Single Pole Single Throw ON/OFF action and is rated at 3A, 12V, with short circuit protection. Pressing the switch IN turns on the upper LED. A separate lower LED can be connected to the dash lighting circuit.
Wire the accessory through a fused relay in every case. Use the wiring diagram supplied with the switch to plan the connections. The relay and harness listing provides a related wiring accessory.
Check the installation location
The hard black face measures 32.5 × 22 mm (approximately 1.28 × 0.87 in). This OEM-style Small Push format is intended for the existing switch space on the listed vehicles. Pay particular attention to the center-console-only restriction for Tacoma.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
What comes with this design
You receive one ON/OFF Small Push switch and one connector with cable; the wiring diagram is supplied. Browse the Small Push family to coordinate the other labels in your panel.
