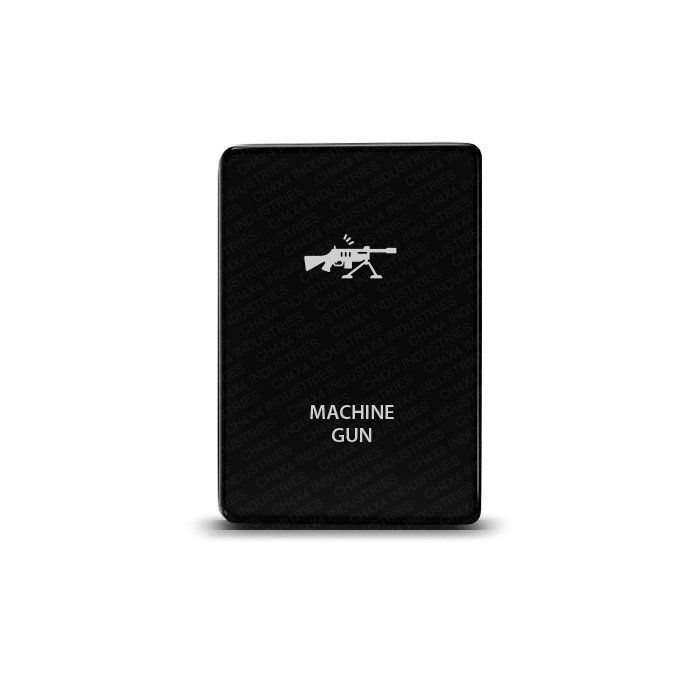

Machine Gun is the novelty artwork on this CH4x4 Small Push switch. It adds a themed detail to a vehicle accessory panel while keeping the matte black finish and compact button format associated with a factory look.
Machine Gun legend for a themed accessory panel
The name identifies the decorative design, not a weapon function. This item is a vehicle accessory ON/OFF switch. Assign it to an appropriate accessory circuit and ensure the person using the vehicle understands what the themed button controls.
The legend is laser etched into a matte black hard face. Heavy-duty ABS construction provides the switch body. If a literal accessory label would make the panel easier to use, compare other options in the Small Push Series before selecting the design.
Electrical specification and two LEDs
The electronic switch is rated at 12V 3A, with short circuit protection and Single Pole Single Throw ON/OFF action. The upper LED illuminates when the switch is pressed IN; the lower LED can connect to a separate dash-light circuit.
These lighting functions let you plan switch indication and panel illumination separately. Use the wiring diagram supplied with the button for its connections.
32.5 × 22 mm face and Toyota fitment
Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style format is compatible with Toyota applications below. Check both the model year and mounting opening, including the Tacoma center-console-only restriction.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
What is included
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. The accessory MUST be wired through a fused relay in ALL cases. Match the relay, fuse and load wiring to the actual accessory circuit.
The relay and 5-pin harness listing provides specifications to review when planning the installation. For original vehicle-control information, consult the relevant Toyota owner’s manual. Review the completed panel layout so the Machine Gun novelty legend remains a clearly understood accessory control.
