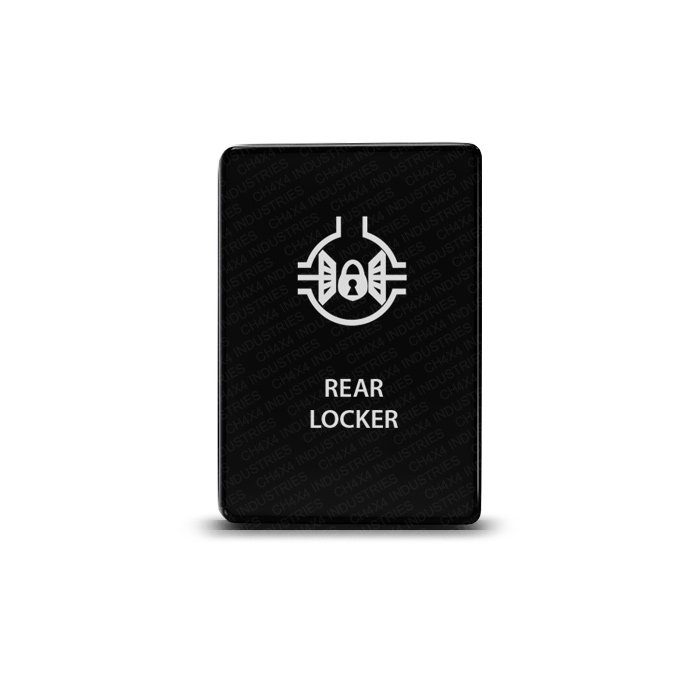

The Rear Locker push switch marks a dedicated rear-differential-locker control position. Its laser-etched label helps separate that circuit from front-locker, compressor and lighting controls in a planned accessory panel. The matte black finish provides a factory look for the listed Toyota mounting applications.
Rear Locker control: check the system requirements
This is an electronic Single Pole Single Throw ON/OFF switch rated at 3A at 12V, with short circuit protection. Confirm that the locker or its controller accepts the intended switching arrangement before installation. The label alone does not establish compatibility with a particular differential-lock system.
The accessory MUST be wired through a fused relay in ALL cases. Follow the locker manufacturer’s instructions as well as the supplied switch wiring diagram when selecting the relay, fuse and cable. Vehicle mounting fitment does not imply direct connection to factory locker wiring.
What the LEDs indicate
The upper LED illuminates when the switch is pressed IN. It indicates the button’s state, not confirmation that the differential is locked. The lower LED can be wired to a separate dash-light circuit. Keep any system-specific engagement indication and operating requirements defined by the locker manufacturer.
Small Push size and materials
- Face: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS construction.
- Matte black hard face with a laser-etched Rear Locker legend.
- OEM-style format with one upper and one lower LED.
Compatible with Toyota vehicle applications
Check your vehicle year and the available mounting opening against this list. Tacoma use is limited to the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Included parts and panel planning
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. The listed package is switch hardware; it does not include a differential locker.
Explore the Small Push Series for neighboring control labels. Refer to the appropriate Toyota owner’s manual for original vehicle-control information when planning the Rear Locker position.
