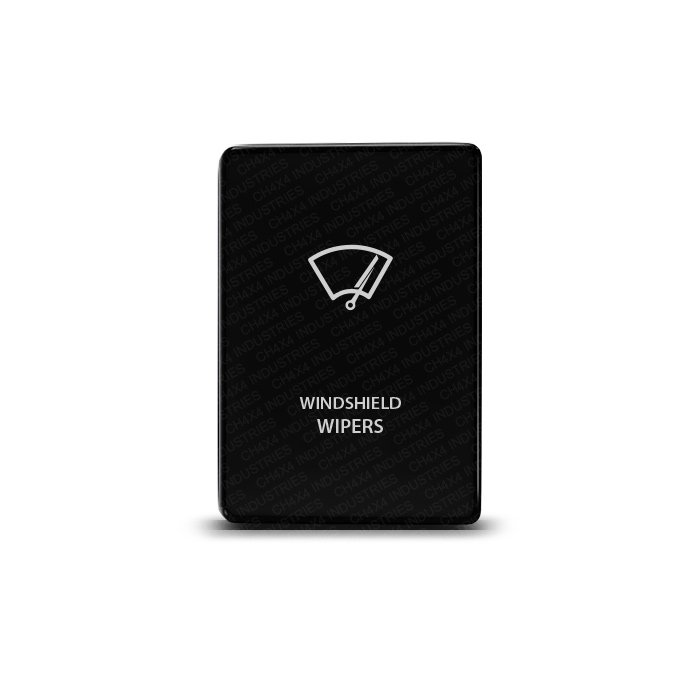

CH4x4 Small Push Switch for Toyota – Windshield Wipers Symbol

$23.98

The Windshield Wipers legend identifies an ON/OFF control in a compact 32.5 × 22 mm format. A matte black laser-etched face and two LEDs provide an OEM-style appearance. Verify compatibility with the intended wiper-control circuit; rated 12V 3A and requires a fused relay.

Switch LED Color

Clear

Description
Additional information

The Windshield Wipers push switch provides a marked ON/OFF button for a suitable control installation. Choose it when the intended circuit accepts the published switching arrangement, and check the equipment’s requirements before connecting it.

What this Windshield Wipers switch provides

The electronic Single Pole Single Throw design is rated at 3A at 12V and includes short circuit protection. Its two switching states do not provide multi-speed selection, an intermittent timer or a washer function. The legend does not establish direct compatibility with a factory wiper-control interface.

Relay and illumination connections

The accessory MUST be wired through a fused relay in ALL cases. Use the supplied wiring diagram for the button and check the wiper equipment or controller documentation separately. Do not route motor current directly through the switch.

When pressed IN, the button’s upper LED is ON. A lower LED can connect to a separate dash-light circuit. This illumination identifies the switch state and panel position rather than confirming wiper movement.

Dimensions and materials

32.5 × 22 mm Small Push face, approximately 1.28 × 0.87 inches.
Heavy-duty ABS body with a matte black hard face.
Laser-etched Windshield Wipers legend.
OEM-style presentation for a factory look.

Compatible with Toyota mounting applications

Check the opening and model year before purchase. Tacoma fitment is center console only. Mounting compatibility does not determine whether an existing wiper controller accepts this ON/OFF input.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Package and planning resources

One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. A wiper motor, controller and fused relay are not part of the listed package.

Review the Small Push series for other panel labels. For the operation of original vehicle equipment, consult the appropriate Toyota owner’s manual.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Windshield Wipers Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
