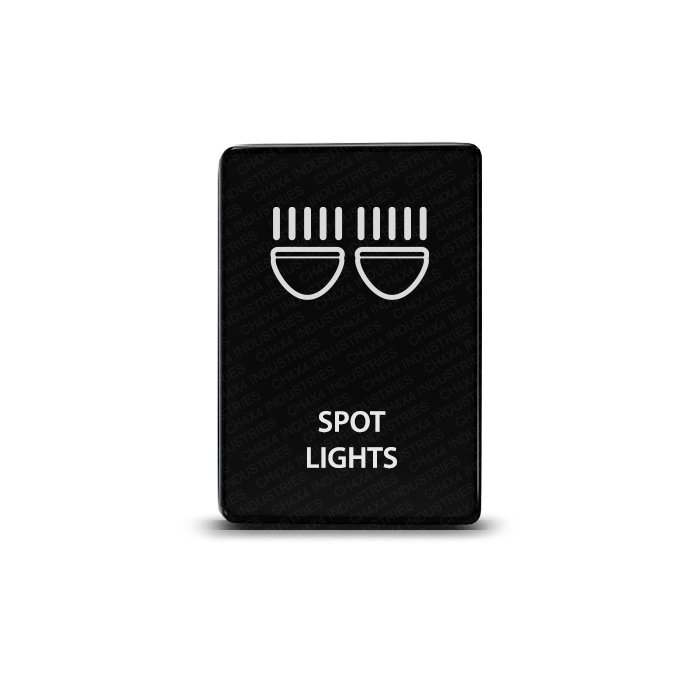

CH4x4 Small Push Switch for Toyota – Spot Lights Symbol

$23.98

The Spot Lights Symbol 2 listing provides an alternative legend for a suitable spotlight circuit. A 32.5 × 22 mm matte black face, laser-etched marking and dual LEDs maintain an OEM-style appearance. Rated 12V 3A ON/OFF; use a fused relay.

Switch LED Color

Clear

Description
Additional information

The Spot Lights Symbol 2 Small Push listing offers a marked control for a suitable auxiliary spotlight circuit. Choose the artwork shown in this product’s gallery when comparing similarly named lighting switches.

Spot Lights Symbol 2 layout

Keep the spotlight button distinguishable from flood, side and rear-light controls. The OEM-style face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches, for a factory look in the correct opening.

Published control specifications

Electronic Single Pole Single Throw ON/OFF switch, rated at 3A at 12V.
Short circuit protection.
Heavy-duty ABS body and matte black hard face.
Laser-etched legend.
Face size: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.

The upper LED is ON when the switch is pressed IN. The lower LED can connect to a separate dash-light circuit. These are panel-indication features rather than a check on lamp condition or light output.

Required relay circuit

The accessory MUST be wired through a fused relay in ALL cases. Follow the supplied switch diagram and the lamp manufacturer’s installation requirements. The button does not provide beam adjustment or dimming, and its rating is not a direct lamp-load allowance.

Compatible with Toyota mounting applications

Verify the year and opening before ordering. Tacoma installation is center console only. For entries marked ON, check the exact year and available switch space.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Supplied components

The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.

The Spot Lights Symbol 2 listing does not include spotlights or a fused relay. Compare the Small Push lighting-control range to coordinate the rest of the panel. Original vehicle-control information is available in the appropriate Toyota owner’s manual.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Spot/Pod Light
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Spot Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
