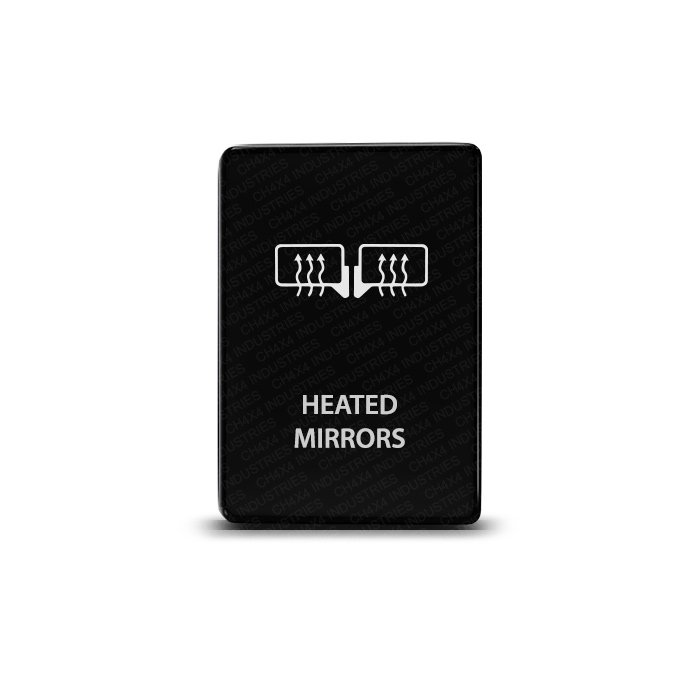

The Heated Mirrors push switch identifies a mirror-heating accessory circuit with a dedicated laser-etched legend. CH4x4 combines that label with a matte black face for a factory look, helping the added control sit visually alongside existing panel buttons.
Heated Mirrors control and system requirements
This is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection. It supplies switch control for a suitable relay circuit; it does not add heating elements to mirrors or provide a heating timer. Confirm the connected mirror system’s requirements separately.
The upper LED illuminates when the button is pressed IN. That light indicates switch position rather than mirror temperature. The lower LED can connect to a separate dash-light circuit, as shown in the supplied wiring diagram.
Materials and face size
- Heavy-duty ABS construction.
- Matte black hard face with a laser-etched Heated Mirrors legend.
- 32.5 × 22 mm dimensions, approximately 1.28 × 0.87 inches.
- One upper LED and one lower LED.
- SPST ON/OFF action, rated at 12V 3A.
Compatible with Toyota mounting applications
Match the listed model year and intended switch opening before ordering. The Tacoma application is Center Console ONLY. Physical fitment does not establish compatibility with every vehicle’s original mirror-heating electronics.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Required relay and supplied components
The accessory MUST be wired through a fused relay in ALL cases. Use the supplied diagram for the button connections, and select the relay, fuse and load wiring around the mirror-heating circuit’s requirements.
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Review the relay with 5-pin harness specifications while planning the installation.
For information on existing vehicle controls, consult the appropriate Toyota owner’s manual. Compare the Small Push Series if you are arranging several accessory labels together, and choose a position where the Heated Mirrors legend remains easy to distinguish.
