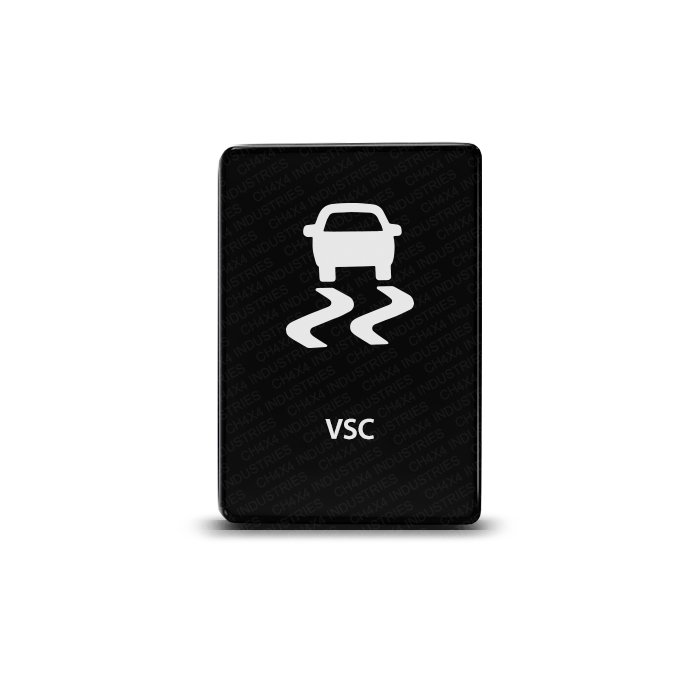

CH4x4 Small Push Switch for Toyota – VSC Symbol

$23.98

Choose the VSC Symbol legend for a marked 32.5 × 22 mm Small Push control. This electronic 12V 3A ON/OFF switch has dual LEDs and a matte black OEM-style face. Confirm the intended circuit separately; the label alone does not establish factory VSC compatibility.

Switch LED Color

Clear

Description
Additional information

The VSC Symbol push switch is a laser-marked Small Push button with an OEM-style appearance. Its published specifications describe a general electronic ON/OFF switch. The face legend does not establish a direct electrical interface with a vehicle’s original stability-control system.

Understand the VSC Symbol designation

Select this item for the design shown in the product gallery, then verify the actual circuit requirements before installation. The vehicle list below concerns the switch mounting application. It is not a claim that this button duplicates the original vehicle’s VSC control behavior.

For original stability-control functions and operation, consult the relevant Toyota owner’s manual. Do not infer system operation from the artwork or from the upper LED.

Published electrical specification

Electronic Single Pole Single Throw ON/OFF switching.
Rated at 3A at 12V.
Short circuit protection.
Upper LED ON when the button is pressed IN.
Lower LED may connect to a separate dash-light circuit.

The accessory MUST be wired through a fused relay in ALL cases. A wiring diagram is supplied for the switch; any connected system’s interface requirements must be checked independently.

Face and body details

The VSC Symbol legend is laser etched into a matte black hard face. Heavy-duty ABS construction and dimensions of 32.5 × 22 mm, approximately 1.28 × 0.87 inches, suit the Small Push format and a factory look.

Compatible with Toyota mounting applications

Confirm the exact year and opening, including the center-console-only restriction for Tacoma.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Package contents

Your order includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied. No vehicle-system interface module is listed as included.

Explore the Small Push switch series if you need a different legend for the intended accessory circuit.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – VSC Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
