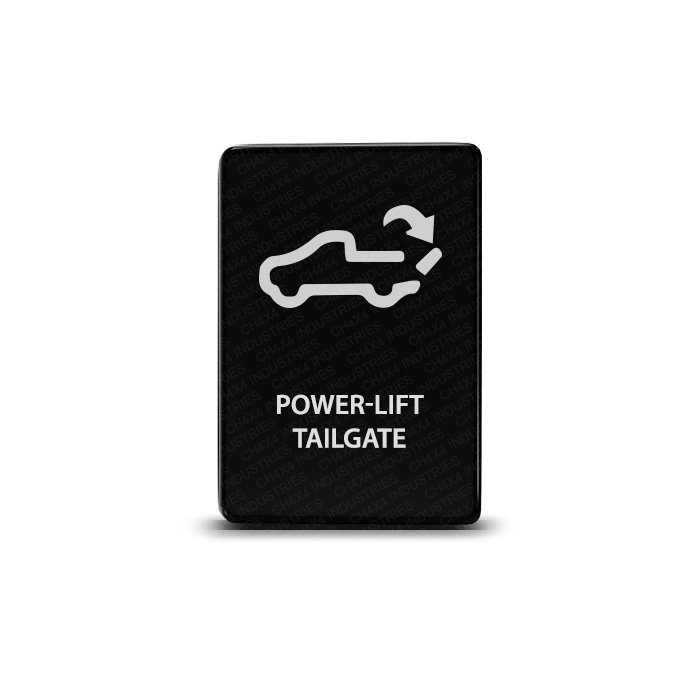

CH4x4 Small Push Switch for Toyota – Power-Lift Tailgate Symbol

$23.98

Give a compatible tailgate-control installation a dedicated Power-Lift Tailgate label. This 32.5 × 22 mm OEM-style Small Push switch uses 12V 3A ON/OFF action with dual LEDs; confirm that your controller accepts this switch type and install the accessory through a fused relay.

Switch LED Color

Clear

Description
Additional information

The Power-Lift Tailgate push switch identifies a suitable tailgate-related control circuit in your Toyota panel. Its purpose-specific legend makes that position distinguishable from lighting and general-power buttons, while a matte black finish preserves a factory look.

Confirm the control type before ordering

This product is an electronic Single Pole Single Throw ON/OFF switch, rated at 3A at 12V with short circuit protection. It is not a momentary button. Check the tailgate controller’s instructions to determine whether this action is appropriate for the intended input.

The Power-Lift Tailgate marking does not establish compatibility with a factory liftgate module or add powered operation to a manual tailgate. Vehicle mounting fitment and compatibility with the tailgate electronics are separate checks.

Relay requirement and illumination

The accessory MUST be wired through a fused relay in ALL cases. Choose circuit components for the system being installed and follow the supplied switch diagram. Do not use the switch’s 3A rating as a motor-load rating.

The upper LED illuminates when the switch is pressed IN. The lower LED can connect to a separate dash-light circuit. These lights indicate the switch and its illumination state; they do not provide feedback about tailgate position.

Power-Lift Tailgate switch construction

32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
Heavy-duty ABS body with a matte black hard face.
Laser-etched legend and OEM-style Small Push format.
One switch and one connector with cable included.
Wiring diagram supplied with the switch.

Compatible with Toyota mounting applications

Match your vehicle and available opening to the following list. Tacoma mounting is for the center console only. Confirm the mounting position before planning a new tailgate-control circuit.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–2014
Toyota Corolla 2006–2013
Toyota Camry 2011–2014

Browse the Small Push Series for other panel labels. Consult your controller documentation and the relevant Toyota owner’s manual when planning where the Power-Lift Tailgate control belongs.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Power-Lift Tailgate Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
