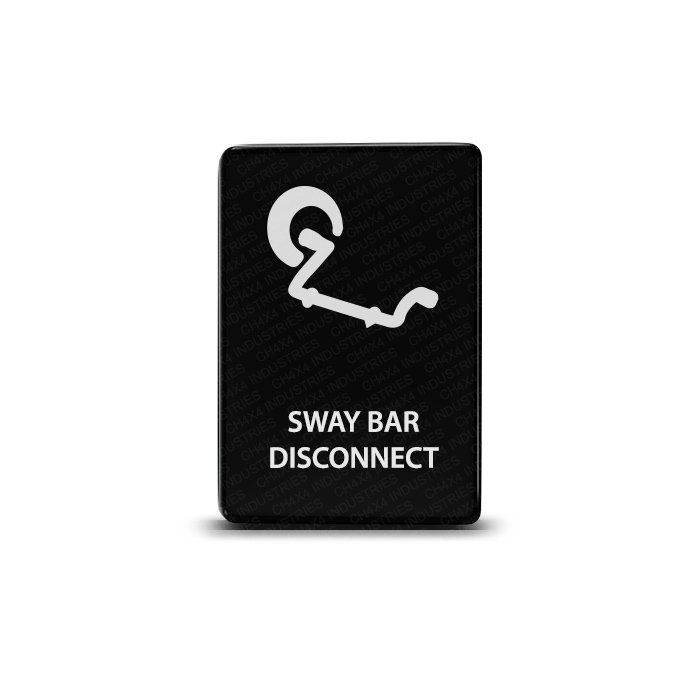

CH4x4 Small Push Switch for Toyota – Sway Bar Disconnect Symbol

$23.98

The Sway Bar Disconnect legend marks this 32.5 × 22 mm OEM-style Small Push switch. Dual LEDs accompany a laser-etched matte black face and 12V 3A ON/OFF operation. Confirm the intended controller’s requirements and use a fused relay.

Switch LED Color

Clear

Description
Additional information

The Sway Bar Disconnect push switch provides a labeled ON/OFF button for a system designed to accept its published electrical arrangement. It is a panel control, not a mechanical disconnect mechanism or a complete suspension-control system.

Sway Bar Disconnect interface requirements

Verify the equipment manufacturer’s control-input requirements before installation. The electronic Single Pole Single Throw switch is rated at 3A at 12V and includes short circuit protection. The legend does not establish a direct connection to an original vehicle suspension-control interface.

The accessory MUST be wired through a fused relay in ALL cases. Use the supplied switch diagram for the button connections and the system’s own instructions for its installation and operation.

Understand the upper LED

The upper LED is ON when the switch is pressed IN. It indicates switch position, not confirmation that a sway bar is disconnected. The lower LED can connect to a separate dash-light circuit.

Size and construction

The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Heavy-duty ABS construction and a matte black hard face support an OEM-style factory look. The Sway Bar Disconnect marking is laser etched into the surface.

Compatible with Toyota mounting locations

Check the model year and opening. Tacoma installation is center console only. Verify the exact year and space for entries marked ON. This list describes mounting applications, not suspension-system compatibility.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Supplied parts

The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.

A disconnect mechanism, system controller and fused relay are not listed as included. Compare other Small Push legends for your panel layout. The appropriate Toyota owner’s manual covers original vehicle controls.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Sway Bar Disconnect Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
