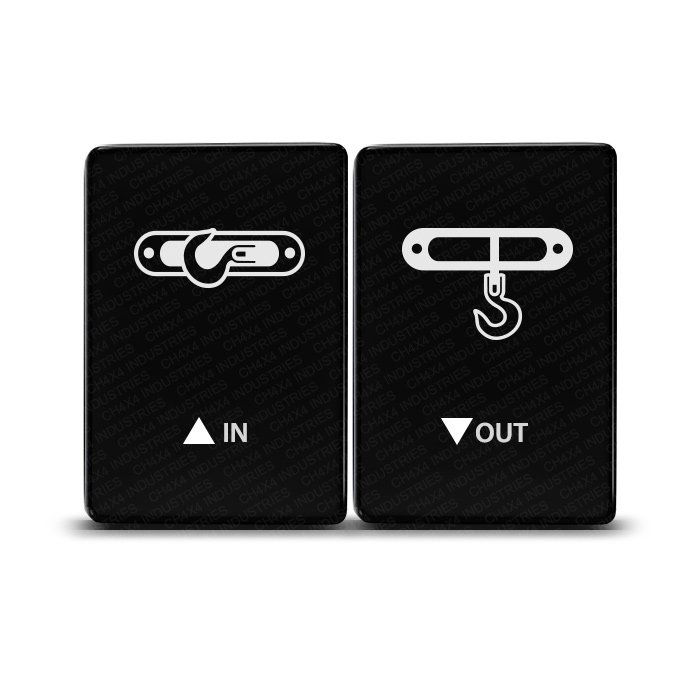

The IN-OUT Symbol kit groups two labeled Small Push buttons in one package. Its matching black faces help organize a pair of control inputs while keeping an OEM-style appearance in compatible Toyota panels. Select the IN-OUT Symbol artwork and panel locations before laying out the wiring.
What the IN-OUT Symbol pair includes
You receive two momentary Small Push switches and two connectors with cables, with a wiring diagram supplied. Each button has its own Single Pole Single Throw (SPST) ON/OFF action: press and hold for ON, then release for OFF. The action does not latch, so a button never needs a second press to release a retained ON state.
Matching faces, separate controls
Each switch face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. The heavy-duty ABS body has a matte black hard surface with a directly laser-etched legend. On each button, the upper LED is ON while pressed in; the lower LED can be connected to a separate dash-light circuit.
Check the connected equipment for suitable momentary inputs. The two SPST switches provide control signals; the IN-OUT wording does not make them a motor-reversing controller.
Electrical rating and relay requirement
Rated at 3A, 12V, with short-circuit protection. In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied wiring diagram and the connected equipment instructions.
Compatible with Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For entries marked ON, verify the exact model year and panel opening before ordering. Browse the Small Push Series for other labels. Vehicle reference information is available in Toyota owner manuals.
