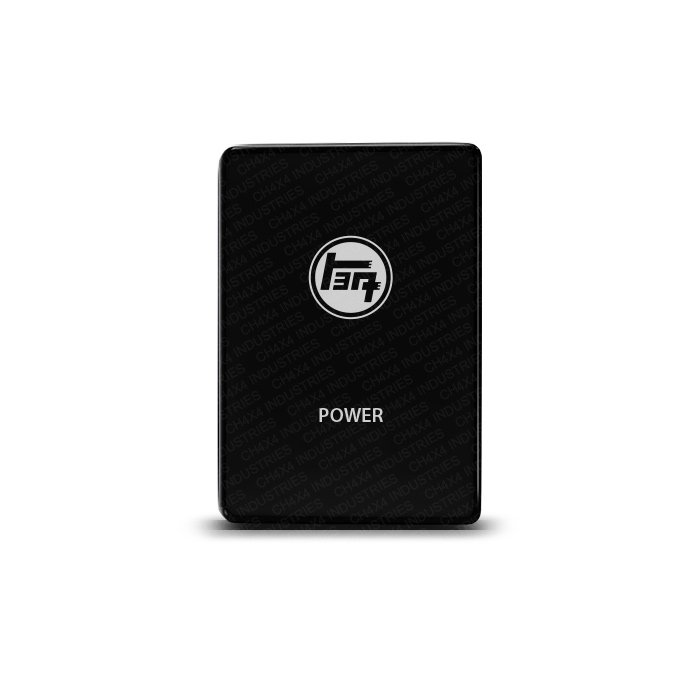

Power Symbol 3 is a general-power artwork choice for drivers organizing an accessory switch panel. The design gives a suitable 12V control circuit its own marked button while retaining the compact proportions of the Small Push Series. Select the pictured legend to coordinate with the other controls in your vehicle.
Check the mounting position first
The face is 32.5 × 22 mm, or approximately 1.28 × 0.87 inches. This OEM-style switch is compatible with Toyota vehicles in the following list. Confirm both the model year and the available opening; Tacoma fitment is specifically for the center console.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Power Symbol 3 technical details
- Electronic Single Pole Single Throw ON/OFF operation.
- Rated at 3A at 12V, with short circuit protection.
- Heavy-duty ABS construction and matte black hard face.
- Laser-etched legend for a factory look.
- One upper LED and one lower LED.
Pressing the switch IN turns on the upper light. The lower light can use a separate dash-light circuit, so follow the supplied diagram when connecting the two illumination circuits. The graphic number identifies this design; it does not indicate three circuits or three operating modes.
Plan the accessory circuit separately
The accessory MUST be wired through a fused relay in ALL cases. Match the relay, fuse and wiring to the load and check the equipment manufacturer’s control requirements. This general-power switch is not a universal interface for every accessory.
What arrives with your switch
You receive one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied. Compare Power Symbol 2 before selecting the artwork for an adjacent position.
For original vehicle-control information, consult the relevant Toyota owner’s manual. Keep the intended function of your Power Symbol 3 circuit clear to anyone who may operate the vehicle.
