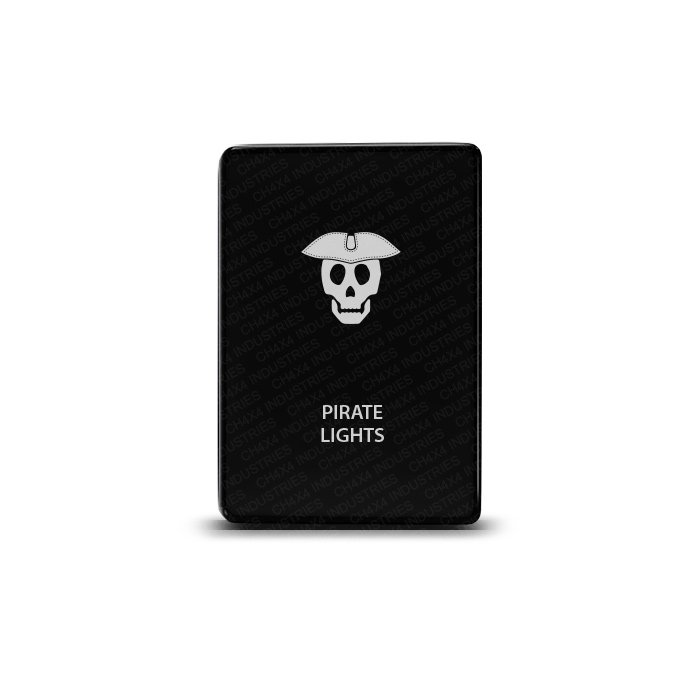

Pirate Lights Symbol 5 is a design option for a themed accessory switch. It gives a lighting-circuit button a laser-etched legend while retaining the matte black finish of the CH4x4 Small Push family.
Check what comes with the control
The package includes one Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied for the button connections. The listing is for the switch components, so plan the lighting equipment and required relay circuit separately.
The accessory MUST be wired through a fused relay in ALL cases. Match the relay, fuse and load wiring to the installed accessory, and follow the supplied diagram rather than connecting a lighting load directly to the button.
Pirate Lights Symbol 5 specifications
The electronic switch is rated at 12V 3A with short circuit protection. It uses Single Pole Single Throw ON/OFF action. Heavy-duty ABS construction supports a matte black hard face, with the legend laser etched directly onto it.
The upper LED illuminates when pressed IN. The lower LED can connect to a separate dash-light circuit. Use the diagram to distinguish these connections when planning illumination for the panel.
Fitment and face dimensions
The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style format is compatible with Toyota models listed below; check the opening and model year together.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Tacoma fitment is Center Console ONLY. Verify that position restriction before choosing the mounting location.
Compare the artwork options
Pirate Lights Symbol 5 identifies a legend design, not extra switching functions. Compare Symbol 3 or Symbol 7 using their product images. Choose the artwork that suits your panel and keep its assigned circuit understandable.
For information about the vehicle’s existing controls, consult the relevant Toyota owner’s manual. The accessory switch diagram supplies the connection details for this added button.
