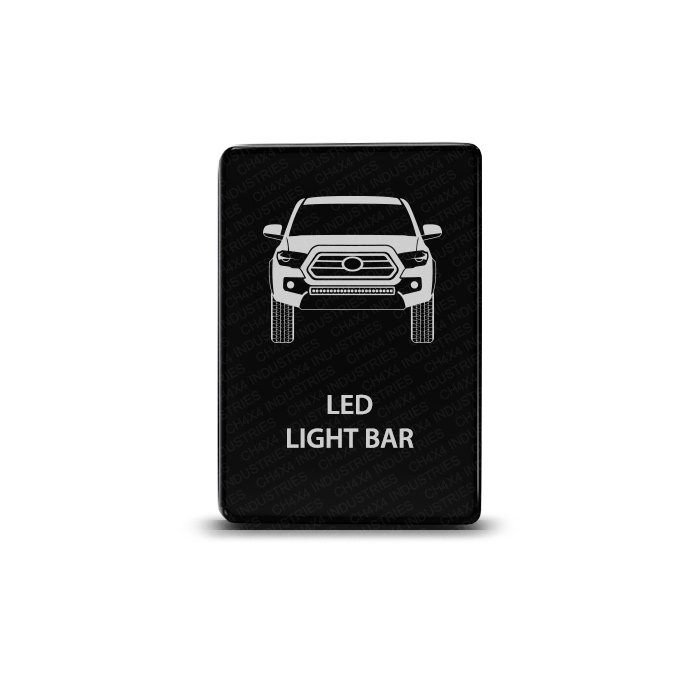

The Tacoma LED Light Bar Small Push switch gives a light-bar circuit a vehicle-themed control. A Tacoma graphic and accessory label are laser etched into the matte black face, creating an OEM-style appearance in the cabin.
Choosing the Tacoma LED Light Bar design
The artwork is aimed at Tacoma owners, while the switch hardware is compatible with Toyota vehicles throughout the fitment list below. The design does not change its face dimensions, electrical rating or latching action. Use the same Small Push opening checks for every listed model.
This Tacoma LED Light Bar button provides ON/OFF control for a suitable relay circuit. It does not supply the light bar or its mounting hardware. If the lighting system uses an additional controller, check that controller requirements alongside the switch wiring diagram.
The upper status LED and separately wired lower illumination LED allow the face lighting to serve the two functions described in the specifications.
Switch specifications
- Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
- Electronic switch rated at 3A, 12V, with short-circuit protection.
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS plastic with a matte black hard surface.
- Laser-etched graphic and legend.
- Upper LED is ON when the switch is pressed in.
- Lower LED can be connected to a separate dash-light circuit.
In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.
Included hardware
One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.
Compatible with Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.
