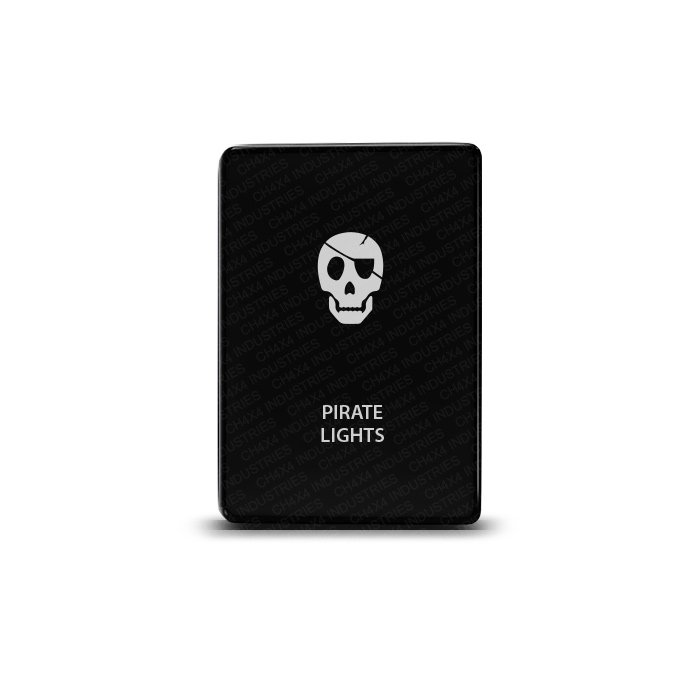

Pirate Lights Symbol 3 pairs a themed accessory legend with the CH4x4 Small Push format. It offers a matte black, factory-look control for a lighting circuit whose function you want to identify with this particular design.
Pirate Lights Symbol 3: two LEDs, separate roles
The upper LED illuminates with the switch pressed IN. The lower LED can be wired to a separate dash-light circuit. That distinction lets you plan button indication and lower illumination separately, using the wiring diagram supplied with the switch.
The legend is laser etched into a matte black hard face, and the body uses heavy-duty ABS. The electronic control is rated at 12V 3A with short circuit protection and Single Pole Single Throw ON/OFF action.
Choose the design by its image
The number in Pirate Lights Symbol 3 names the artwork version. It does not mean three lighting modes or a different load capacity. Compare Symbol 2 and Symbol 5 to select the legend you prefer.
Match the opening and Toyota application
Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. This OEM-style switch is compatible with Toyota applications below. Check the year and position before ordering, particularly Tacoma’s center-console-only fitment.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Prepare the required circuit parts
The accessory MUST be wired through a fused relay in ALL cases. Choose the relay, fuse and load wiring for the connected lights rather than treating the button’s 3A rating as a lamp-load allowance.
You receive one Small Push ON/OFF switch and one connector with cable; a wiring diagram is supplied. Review the relay with 5-pin harness specifications when gathering installation parts.
For original vehicle controls, use the appropriate Toyota owner’s manual. Keep the assigned circuit easy to recognize when incorporating the themed button into the rest of your panel.
