The Twin Air Compressor switch identifies a dedicated compressor-control position in an OEM-style accessory panel. Its legend describes the intended control label; the switch does not supply compressed air, include a compressor or increase the capacity of the connected equipment.
Planning a Twin Air Compressor installation
Check the compressor manufacturer’s control-circuit instructions first. The electronic Single Pole Single Throw switch has a 3A rating at 12V and short circuit protection. In ALL cases the accessory MUST be wired through a fused relay.
Do not connect compressor motor current directly through the Small Push button. The name on the face also does not imply two independently switched outputs: the published arrangement is Single Pole Single Throw.
Panel lighting and switch position
The upper LED is ON when the switch is pressed IN. A lower LED can be wired to a separate dash-light circuit. Use the supplied wiring diagram to identify these connections; the upper indicator is not an air-pressure gauge.
Physical specifications

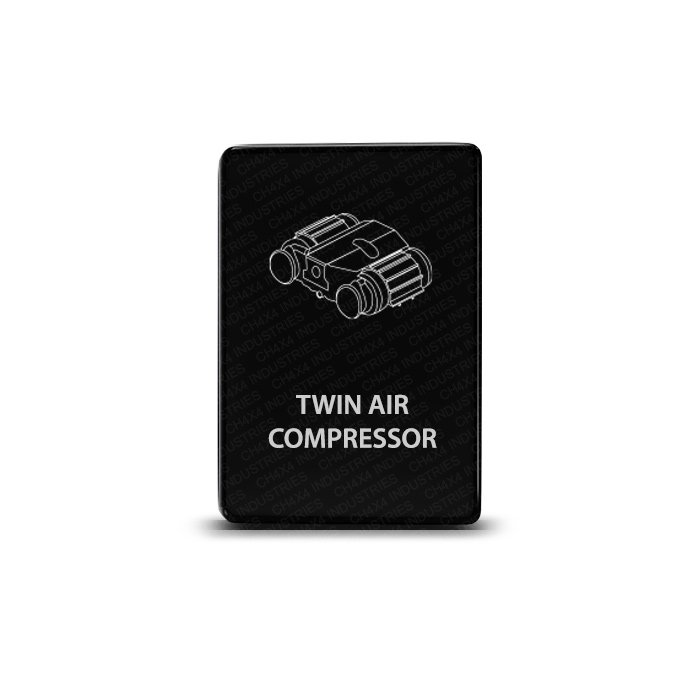

A heavy-duty ABS body supports the matte black hard face. The Twin Air Compressor legend is laser etched into the surface. Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches, for a factory look in the appropriate opening.
Compatible with Toyota mounting locations
Check the model year and opening before purchase. Tacoma installation is center console only. For entries marked ON, confirm your exact year and available switch space before ordering.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Box contents and planning references
The package contains one Toyota Small Push switch and one connector with cable, with a wiring diagram supplied. Compressor equipment and a fused relay are not listed as included.
Browse the Small Push control range for other accessory labels. The relevant Toyota owner’s manual provides information about original vehicle controls.
