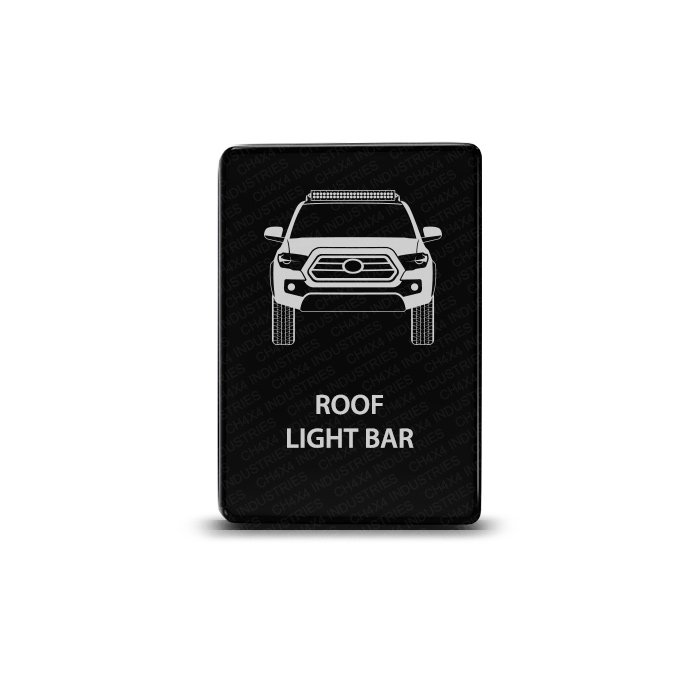

The Tacoma Roof Light Bar Small Push switch distinguishes a roof-mounted bar from bumper or other auxiliary lighting controls. Its Tacoma graphic gives the face a coordinated vehicle theme and its matte black finish provides a factory look.
Tacoma Roof Light Bar panel identification
The illustration is intended for a Tacoma-focused interior, but this switch also fits the other Toyota applications listed below. It uses the same Small Push face size and electrical hardware across those vehicles. Confirm the panel opening and listed location before choosing the control position.
A Tacoma Roof Light Bar label helps separate similar lighting circuits. This package supplies the switch and connector, rather than a light bar, roof bracket or lighting controller. Follow the connected equipment requirements when planning the accessory installation.
Latching ON/OFF operation holds the chosen state between presses. The upper LED indicates the pressed-in ON state, while the lower LED may follow a separate dash-light circuit.
Switch specifications
- Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
- Electronic switch rated at 3A, 12V, with short-circuit protection.
- 32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
- Heavy-duty ABS plastic with a matte black hard surface.
- Laser-etched graphic and legend.
- Upper LED is ON when the switch is pressed in.
- Lower LED can be connected to a separate dash-light circuit.
In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.
Included hardware
One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.
Compatible with Toyota vehicles
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.
