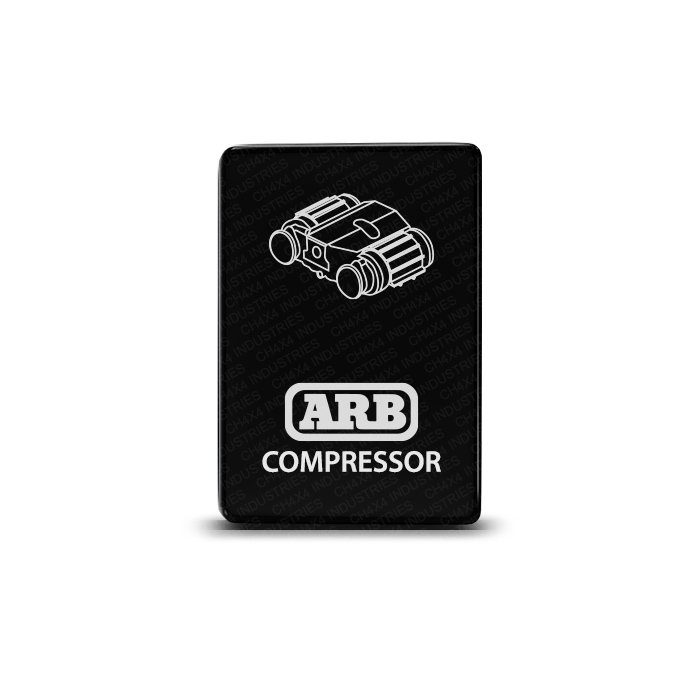

CH4x4 Small Push Switch for Toyota – ARB Compressor Symbol 2

$23.98

Select ARB Compressor Symbol 2 when choosing the legend for your compressor-control position. A laser-etched 32.5 × 22 mm matte black face and dual LEDs maintain a factory look. This 12V 3A ON/OFF switch requires a compatible control circuit and fused relay.

Switch LED Color

Clear

Description
Additional information

ARB Compressor Symbol 2 gives you another artwork option for a compact compressor-control button. Compare the product gallery with the other legends in your panel, then confirm the electrical interface required by the compressor you intend to control.

ARB Compressor Symbol 2 design and size

The Small Push face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. The body is heavy-duty ABS, with a matte black hard face and a directly laser-etched legend for an OEM-style appearance.

Symbol 2 identifies this design selection. It does not change the current rating or guarantee a plug-in match with every compressor harness.

Separate LED connections

The upper LED illuminates when the button is pressed IN. The lower LED can be connected to a separate dash-light circuit. Follow the supplied wiring diagram to distinguish the illumination connections from the control circuit.

Published switching specification

Electronic Single Pole Single Throw ON/OFF operation.
3A rating at 12V.
Short circuit protection.
Accessory MUST be wired through a fused relay in ALL cases.

Use the compressor manufacturer’s requirements when arranging the relay and load wiring. The switch is a control component, not a direct motor-current path or pressure-monitoring device.

Compatible with Toyota applications

Check the mounting opening and year. Tacoma compatibility is center console only. Confirm the exact year and switch space for entries marked ON.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

Included components

You receive one Toyota Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied. The ARB Compressor Symbol 2 item does not include compressor equipment or a fused relay.

Browse other Small Push designs for coordinating buttons. Refer to the appropriate Toyota owner’s manual for original vehicle-control information.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Compressor
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – ARB Compressor Symbol 2 is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
