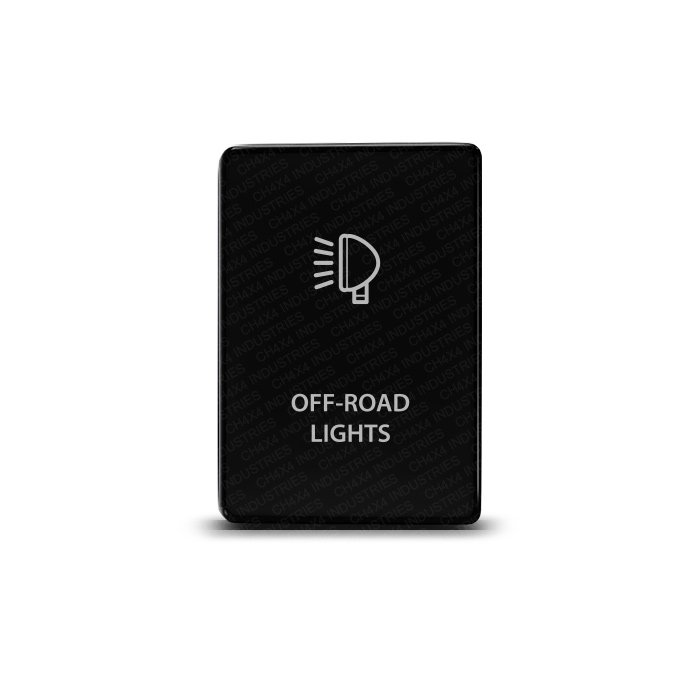

The Off-Road Lights Small Push switch gives your added lighting circuit a clearly named control. CH4x4 pairs the laser-etched legend with a matte black face, providing an OEM-style appearance for the Toyota applications listed below.
Off-Road Lights in the Small Push format
The face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches. Check the opening at the intended mounting position and verify the vehicle year before ordering. A similar-looking blank can belong to a different switch format.
Compatible with Toyota mounting applications
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Tacoma fitment is Center Console ONLY. Use that location restriction when deciding where the Off-Road Lights control belongs in your panel.
ON/OFF operation and dual LEDs
This is a 12V 3A electronic Single Pole Single Throw ON/OFF switch with short circuit protection. It has heavy-duty ABS construction and a matte black hard face with the legend laser etched directly onto it.
The upper LED illuminates when the button is pressed IN. The lower LED can connect to a separate dash-light circuit. Follow the supplied wiring diagram to plan the indication and illumination connections.
Choose the legend and prepare the circuit
Compare Off-Road Lights Symbol 3 if you prefer its alternate artwork. The design name identifies the label; it does not determine the lamps’ beam pattern, brightness or electrical load.
The accessory MUST be wired through a fused relay in ALL cases. Select the relay, fuse and wiring to suit the actual lights being installed. Review the relay and 5-pin harness specifications when gathering the required components.
Included parts
The package contains one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied. Plan each lighting circuit’s label before fitting adjacent buttons so the finished panel remains easy to understand.
For original vehicle-control information, consult the applicable Toyota owner’s manual. The switch diagram provides the connection details for this added accessory control.
