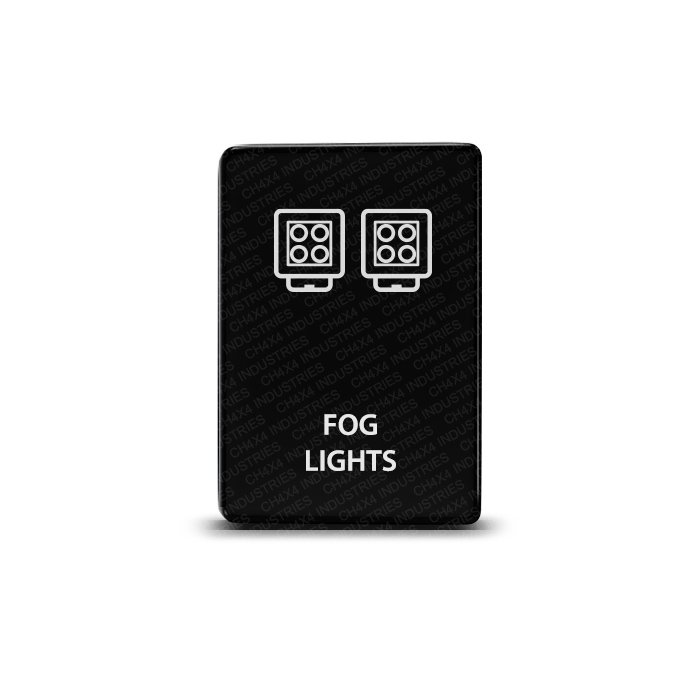

Fog Lights Symbol 9 offers another legend choice for your accessory-lighting panel. Start with the design shown in the gallery, then check the available mounting opening and the electrical requirements of the lights you intend to control.
Choosing Fog Lights Symbol 9
The OEM-style button uses a heavy-duty ABS body and matte black hard face. The graphic is laser etched directly into the surface. Face dimensions are 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
Symbol 9 identifies the artwork option. It does not increase the switch’s load capacity or establish a direct match with an original fog-light harness.
Two separate illumination roles
Pressing the button IN turns the upper LED ON. The lower LED can be wired to a separate dash-light circuit using the supplied diagram. The upper indicator shows the switch state, not the condition of the lamps.
Electrical rating and installation
This electronic Single Pole Single Throw ON/OFF switch is rated at 3A at 12V and includes short circuit protection. The accessory MUST be wired through a fused relay in ALL cases. Plan the relay and load wiring according to the lighting equipment’s instructions.
Compatible with Toyota applications
Check the model year and switch space. Tacoma mounting is center console only. Confirm the exact year and opening for entries marked ON.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Supplied components
The package includes one Small Push ON/OFF switch and one connector with cable, with a wiring diagram supplied.
The Fog Lights Symbol 9 package does not list lamps or a fused relay as included. Browse the Small Push designs for coordinating controls, and refer to the appropriate Toyota owner’s manual when identifying original vehicle controls.
