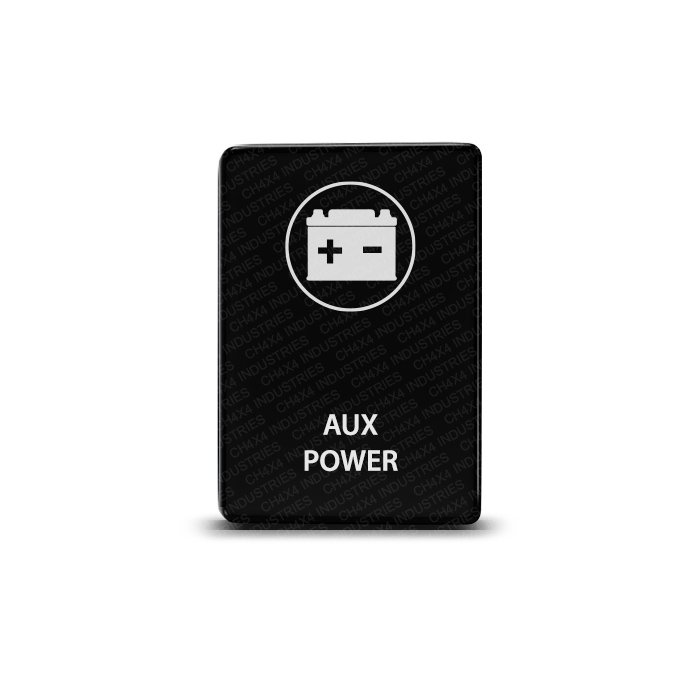

The Aux Power push switch provides a general accessory-power label when a device-specific legend does not suit your panel. Assign it to a clearly identified circuit so the button’s purpose remains easy to recognize alongside lighting, compressor or other controls.
Use Aux Power as a control
This electronic Single Pole Single Throw ON/OFF switch is rated at 3A at 12V, with short circuit protection. It does not include a power supply, inverter or voltage converter. Verify the connected accessory’s supply and control requirements separately.
The accessory MUST be wired through a fused relay in ALL cases. Use the supplied switch diagram together with the equipment’s installation instructions; the 12V rating does not establish compatibility with every 12V accessory load.
Two indicators for the panel
The upper LED is ON when the button is pressed IN. The lower LED can be wired to a separate dash-light circuit. The upper light shows switch position rather than measuring output voltage or confirming that the accessory is operating.
Dimensions and construction
The face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches. A heavy-duty ABS body and matte black hard face create an OEM-style presentation. The Aux Power legend is laser etched into the surface for a factory look.
Compatible with Toyota mounting applications
Check the year and switch opening before purchase. Tacoma fitment is limited to the center console. Confirm the exact year and available switch space for entries marked ON.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
What is supplied?
The package contains one Toyota Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied; a power source, accessory equipment and fused relay are not listed as included.
Explore the Small Push control range for more specific legends. Refer to the applicable Toyota owner’s manual when identifying the original vehicle controls.
