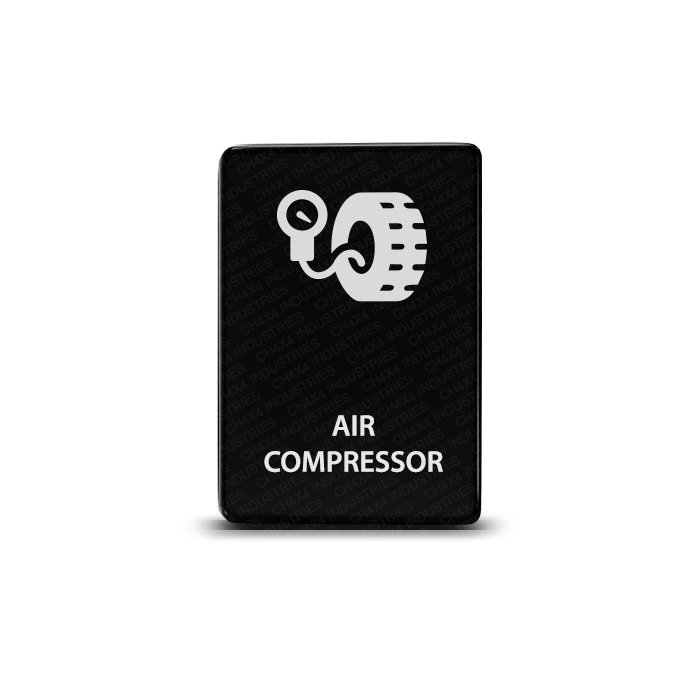

CH4x4 Small Push Switch for Toyota – Air Compressor Symbol

$23.98

This Air Compressor Symbol 4 listing carries SKU CH4X4-TOY-ACOM5-SML. The OEM-style Small Push switch has a 32.5 × 22 mm laser-etched face, dual LEDs and 12V 3A ON/OFF operation. Check your compressor control circuit and install a fused relay.

Switch LED Color

Clear

Description
Additional information

The Air Compressor Symbol 4 Small Push listing provides a marked button for a suitable compressor-control circuit. Its published product SKU is CH4X4-TOY-ACOM5-SML; use that identifier and the product gallery when comparing similar compressor legends.

Air Compressor Symbol 4 control requirements

This electronic Single Pole Single Throw ON/OFF switch is rated at 3A at 12V and includes short circuit protection. Verify the compressor manufacturer’s control-input requirements before connecting the button.

The accessory MUST be wired through a fused relay in ALL cases. Compressor motor current must not run directly through the Small Push switch. The relay and load-side wiring must be appropriate for the connected equipment.

Illuminated panel identification

The upper LED turns ON when the switch is pressed IN. A lower LED can be wired to a separate dash-light circuit using the supplied diagram. The upper light indicates the button’s position, not system pressure or confirmation that the compressor is running.

Physical construction

32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
Heavy-duty ABS body and matte black hard face.
Laser-etched compressor legend.
OEM-style format for a factory look.

Compatible with Toyota mounting applications

Check the year and available opening. Tacoma fitment is center console only. Confirm your exact model year and switch space for entries marked ON.

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

What the package includes

One Toyota Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Compressor hardware and a fused relay are not in the listed package.

Compare the Small Push switch range when selecting adjacent controls. The appropriate Toyota owner’s manual provides information about original vehicle controls. Air Compressor Symbol 4 identifies this catalog listing; the SKU above identifies the product record.

Weight	2 oz
Dimensions	5 × 5 × 3 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Controls	Compressor
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota – Air Compressor Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
