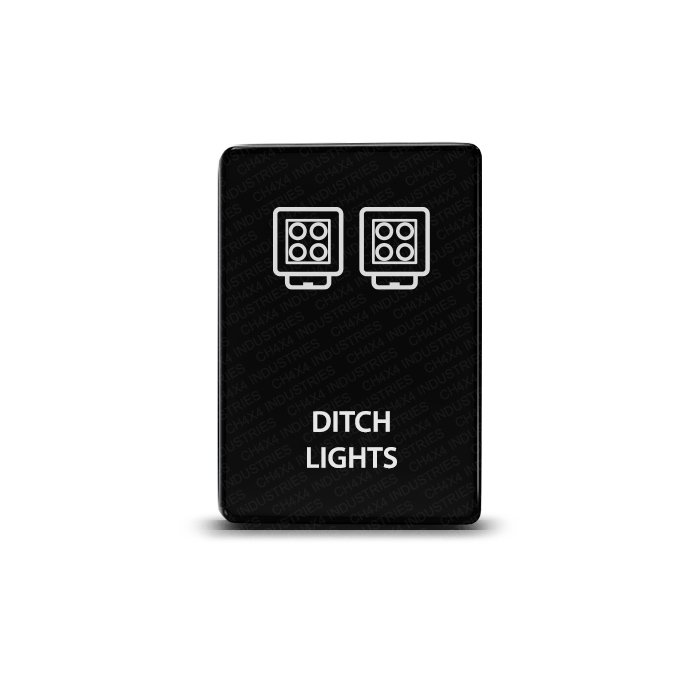

This Toyota Ditch Lights switch is the CH4x4 Small Push model identified by SKU CH4X4-TOY-DITCH5-SML. It gives a suitable lighting-control installation a marked panel position, with an OEM-style face and the design shown in this product’s gallery.
Toyota Ditch Lights control: DITCH5 selection
Use the SKU to distinguish this model from other listings that share the Ditch Lights name. The marking is laser etched into a matte black hard face. The body is made from heavy-duty ABS, and the face measures 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
Confirm the mounting location
Check your available opening against the listed applications to maintain a factory look. Tacoma fitment is restricted to the center console. For vehicles listed with ON, verify the exact year and switch space before purchase.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–ON
- Toyota Corolla 2006–2013
- Toyota Highlander 2008–ON
- Toyota RAV4 2008–2012
- Toyota Yaris 2008
- Toyota Camry 2011–2014
Switch action and electrical limits
The electronic Single Pole Single Throw ON/OFF switch is rated at 3A at 12V, with short circuit protection. The accessory MUST be wired through a fused relay in ALL cases.
Follow the supplied diagram for the button and the lighting equipment’s instructions for the load circuit. The Toyota Ditch Lights mounting application does not establish a direct harness connection or change the lamp-load requirements.
How the two LEDs operate
The upper LED is ON when the button is pressed IN. The lower LED can be connected to a separate dash-light circuit. The illumination indicates the switch position and panel location, not a measurement of the connected lights.
Supplied components
The package contains one Toyota Small Push ON/OFF switch and one connector with cable. A wiring diagram is supplied. Lamps and a fused relay are not listed as included with SKU CH4X4-TOY-DITCH5-SML.
Browse the Small Push collection for alternative legends. Refer to the relevant Toyota owner’s manual for original vehicle-control information.
