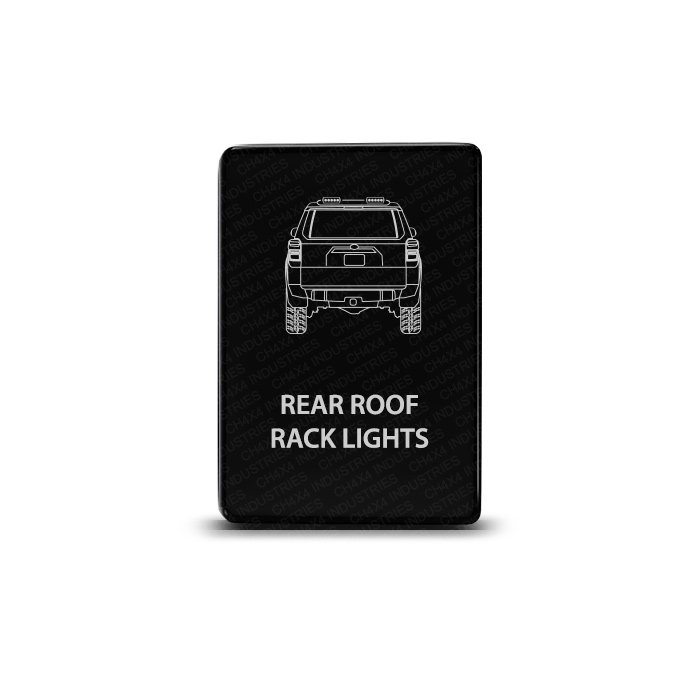

CH4x4 Small Push Switch for Toyota 4Runner – Rear Roof Rack Lights Symbol

$23.98

Give lighting at the rear of the roof rack a precise control label. The 4Runner Rear Roof Rack Lights Small Push switch fits all Toyota applications listed below. 32.5 × 22 mm face, latching SPST ON/OFF and 12V 3A rating. Fused relay required.

Switch LED Color

Clear

Description
Additional information

The 4Runner Rear Roof Rack Lights Small Push switch pairs a laser-etched vehicle graphic with a dedicated lighting legend. Give lighting at the rear of the roof rack a precise control label.

4Runner Rear Roof Rack Lights: Separate rack-mounted rear lighting

This legend is more specific than a general rear-light button. It helps identify the intended circuit when rack lighting and other rear accessories have separate controls in the same panel.

The engraved 4Runner theme does not limit the housing to that vehicle. All established Small Push Toyota applications remain listed below.

Its matte black ABS face provides an OEM-style finish and factory look. Press once for ON and again for OFF. Before installation, compare the available panel opening with the 32.5 × 22 mm face and follow the supplied wiring diagram.

4Runner Rear Roof Rack Lights switch specifications

Single Pole Single Throw (SPST), latching ON/OFF: press for ON, press again for OFF.
Electronic switch rated at 3A, 12V, with short-circuit protection.
32.5 × 22 mm face, approximately 1.28 × 0.87 inches.
Heavy-duty ABS plastic with a matte black hard surface.
Laser-etched graphic and legend.
Upper LED is ON when the switch is pressed in.
Lower LED can be connected to a separate dash-light circuit.

In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied diagram and the accessory wiring requirements.

What comes with this switch

One Small Push ON/OFF switch, one connector with cable and a supplied wiring diagram.

Toyota Small Push fitment

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For applications marked ON, verify the exact year and panel opening. See the Small Push Series for other designs and Toyota owner manuals for vehicle reference information.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	On-Off
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	On-Off
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota
Series	Square 4Runner

Built For Real-World Use

Every CH4x4 Small Push Switch for Toyota 4Runner – Rear Roof Rack Lights Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Purpose-built to slot into the factory-style dash opening on Toyota 4Runner applications, no cutting or adapters needed.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a On-Off switch — it latches in place and stays on until you flip it back off, ideal for lights and accessories you run continuously.

Will this switch fit my Toyota 4Runner?

Yes — this switch is categorized under our Toyota 4Runner lineup and matches that application's factory-style dash opening.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
