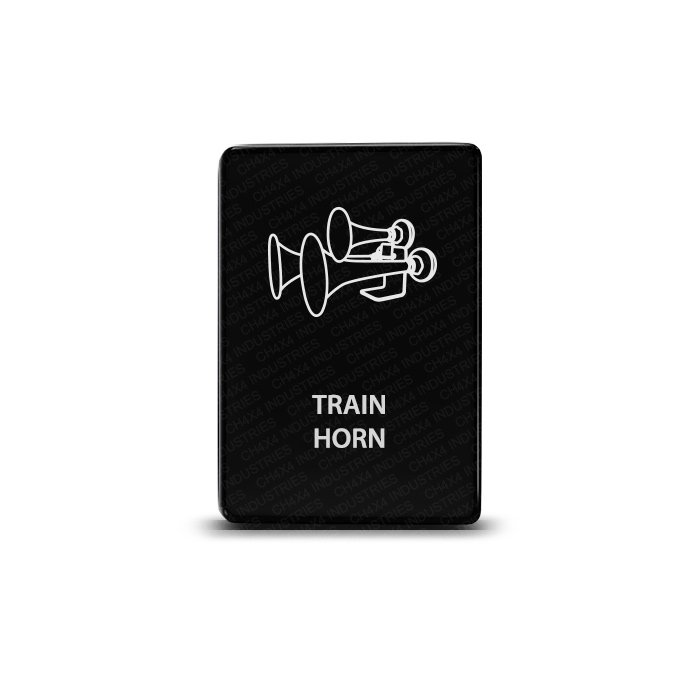

CH4x4 Momentary Small Push Switch for Toyota – Train Horn Symbol

$23.98

Keep horn activation under your fingertip with the Train Horn Symbol momentary button. Press and hold for ON; release for OFF. This Small Push SPST switch has a laser-etched face, two LEDs and an OEM-style 32.5 × 22 mm format. Rated 12V 3A and requires a fused relay.

Switch LED Color

Clear

Description
Additional information

A clearly identified horn control helps distinguish the button from nearby accessory switches. The Train Horn Symbol momentary Small Push model combines that label with a factory look for the compatible Toyota panel openings listed below. Its legend is laser etched directly into the matte black surface.

Train Horn Symbol operating action

This SPST ON/OFF switch uses press-and-hold operation. It stays ON while your finger holds the button in and switches OFF when released. Unlike a latching accessory button, it does not remain ON between presses. Match this momentary action to the horn control circuit before wiring.

Compact panel hardware

The 32.5 × 22 mm face (about 1.28 × 0.87 inches) is built from heavy-duty ABS plastic with a black hard surface. One upper LED illuminates while the switch is pressed in. A separate lower LED can connect to the dashboard lighting circuit, allowing the label lighting to follow that circuit.

The Train Horn Symbol package is a switch and cable connector with a supplied wiring diagram. It does not include a horn, air supply or horn-control equipment; choose those components to suit the installation.

Electrical rating and relay requirement

Rated at 3A, 12V, with short-circuit protection. In ALL cases, the accessory MUST be wired through a fused relay. Follow the supplied wiring diagram and the connected equipment instructions.

Included in the package

One momentary Small Push switch, one connector with cable and a supplied wiring diagram.

Compatible with Toyota vehicles

Toyota Tacoma 2012–2023 (Center Console ONLY)
Toyota Tundra 2008–2021
Toyota 4Runner 2010–2024
Toyota Land Cruiser Prado 150 Series 2010–2014
Toyota Land Cruiser 200 Series 2008–2013
Toyota Sequoia 2008–ON
Toyota Corolla 2006–2013
Toyota Highlander 2008–ON
Toyota RAV4 2008–2012
Toyota Yaris 2008
Toyota Camry 2011–2014

For entries marked ON, verify the exact model year and panel opening before ordering. Browse the Small Push Series for other labels. Vehicle reference information is available in Toyota owner manuals.

Weight	2 oz
Dimensions	5 × 5 × 2 in
Switch Action	Momentary
Vehicle	Toyota
Switch LED Color	Amber, Blue, Green, Red, White
Switch Type	Square Push
Function	Momentary
Controls	Air Horn
Voltage	12V 3A (Push Toyota)
Compatibility	OEM Toyota

Built For Real-World Use

Every CH4x4 Momentary Small Push Switch for Toyota – Train Horn Symbol is laser-etched directly into the switch face — not printed or stickered — so the design holds up to years of sun, wash bays, and trail use instead of fading or peeling off. Sized to the OEM-style dash opening used across Toyota applications.

Frequently Asked Questions

Is this switch On-Off or Momentary?

This is a Momentary switch — it only stays active while you hold it and springs back off, ideal for horns, winches, and anything you only want on for a moment.

What vehicles is this switch compatible with?

This switch is built for Toyota applications.

Is the design laser-etched or a sticker?

Laser-etched, directly into the switch face — not a sticker or ink print, so the design won't fade, peel, or wear off over time.

What do I need to install this switch?

Just basic hand tools and simple 12V wiring — this switch drops into a standard dash opening and wires the same as any single-pole 12V accessory switch.
