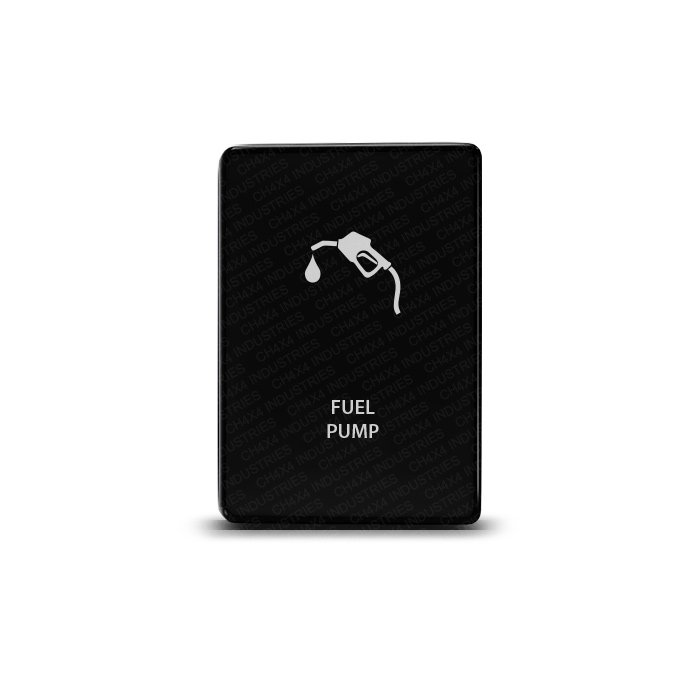

The Fuel Pump Small Push switch provides a clearly named control for an appropriately designed accessory circuit. Its matte black hard face and laser-etched legend create a factory look while identifying the assigned function on your panel.
Plan the Fuel Pump circuit before installation
This electronic switch is rated at 12V 3A and provides Single Pole Single Throw ON/OFF operation with short circuit protection. The accessory MUST be wired through a fused relay in ALL cases. Do not use the button’s rating as the pump’s permitted load rating.
Confirm the fuel system’s control requirements and retain its required safety controls. The legend does not make this switch a universal substitute for original fuel-system electronics. Follow the equipment’s instructions alongside the supplied switch diagram when choosing the relay, fuse and load wiring.
Switch indication and construction
- Heavy-duty ABS construction with a matte black hard face.
- Laser-etched Fuel Pump legend.
- Upper LED illuminates when the switch is pressed IN.
- Lower LED can connect to a separate dash-light circuit.
- Face dimensions: 32.5 × 22 mm, approximately 1.28 × 0.87 inches.
The upper light indicates the pressed-in switch position. It does not measure fuel pressure or confirm pump operation. Use the supplied wiring diagram for the two LED connections.
Compatible with Toyota mounting applications below
Check the vehicle year and physical opening for this OEM-style Small Push format. Tacoma fitment applies to the center console only; this list does not certify compatibility with the vehicle’s fuel-system electronics.
- Toyota Tacoma 2012–2023 (Center Console ONLY)
- Toyota Tundra 2008–2021
- Toyota 4Runner 2010–2024
- Toyota Land Cruiser Prado 150 Series 2010–2014
- Toyota Land Cruiser 200 Series 2008–2013
- Toyota Sequoia 2008–2014
- Toyota Corolla 2006–2013
- Toyota Camry 2011–2014
Package contents and panel planning
One Small Push ON/OFF switch and one connector with cable are included, with a wiring diagram supplied. Compare the Small Push Series when selecting labels for the surrounding accessory controls.
The relay and 5-pin harness listing provides specifications to review against your circuit requirements. For original vehicle-control information, consult the relevant Toyota owner’s manual. Verify the planned Fuel Pump control arrangement before installation rather than relying on the symbol alone.
